Description

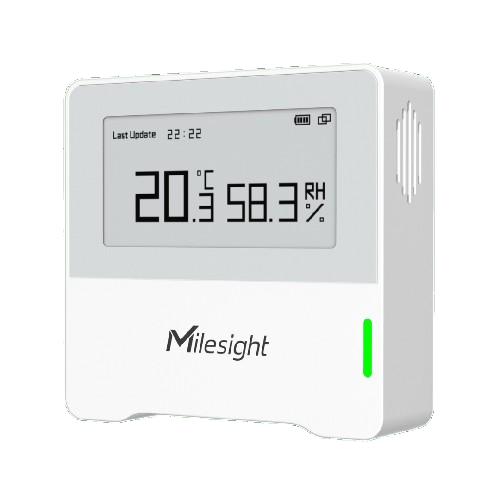

AM102 2-in-1 IAQ LoRaWAN Temperature & Humidity Sensor
- Temperature and Humidity Detection
- 2.13-Inch E-ink Display
- Traffic Light Status Indicator
- Wireless Installation with Anti-theft Protection
- Hibernation Mode for Ultra-Low Power Consumption
- Battery Life up to 7 Years
The AM102 is a precision indoor LoRaWAN temperature and humidity sensor featuring a clear 2.13-inch E-ink display. This advanced sensor leverages LoRaWAN® technology for long-range wireless transmission, helping users maintain optimal indoor conditions while enhancing comfort, safety, and operational efficiency through real-time environmental monitoring.
Essential IAQ Monitoring
Delivers accurate real-time temperature and humidity measurements for comprehensive indoor air quality assessment.
- Traffic Light Status Indicator for instant visual feedback
- Interactive Information displayed on E-ink Screen
Smart Screen Technology for Extended Operation
When current readings are similar to previous values, the screen automatically stops updating to conserve battery power, extending operational life.
Hibernation Mode for Maximum Efficiency
- Utilize hibernation during extended periods of non-use to maximize power conservation
- Hibernation consumes less power than smart screen mode by automatically disabling data collection
LoRaWAN® Technology
- Extended Range: Data transmission up to 2 km in urban areas and 15 km in rural environments
- Universal Compatibility: Compliant with standard LoRaWAN® gateways and network servers
Technical Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Temperature Sensor | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | -20°C ~ 60°C |
| Accuracy | ± 0.2°C |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | 0% RH~ 100% RH |
| Accuracy | ± 2% RH |
| Resolution | 0.5% RH |
| Display & Configuration | |
| Display | 2.13-inch Black & White E-Ink Screen |
| Button | 1 × Power Button |
| LED | 1 × Status Indicator |
| Configuration | Mobile App via NFC |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl? Replaceable Batteries |
| Battery Life (10 min interval, 25°C) | Over 7 Years |
| Operating Temperature | -20°C ~ 60°C (E-Ink Screen: 0°C ~ 40°C) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) |
| Installation | Wall Screw Mounting, 3M Tape Mounting |
