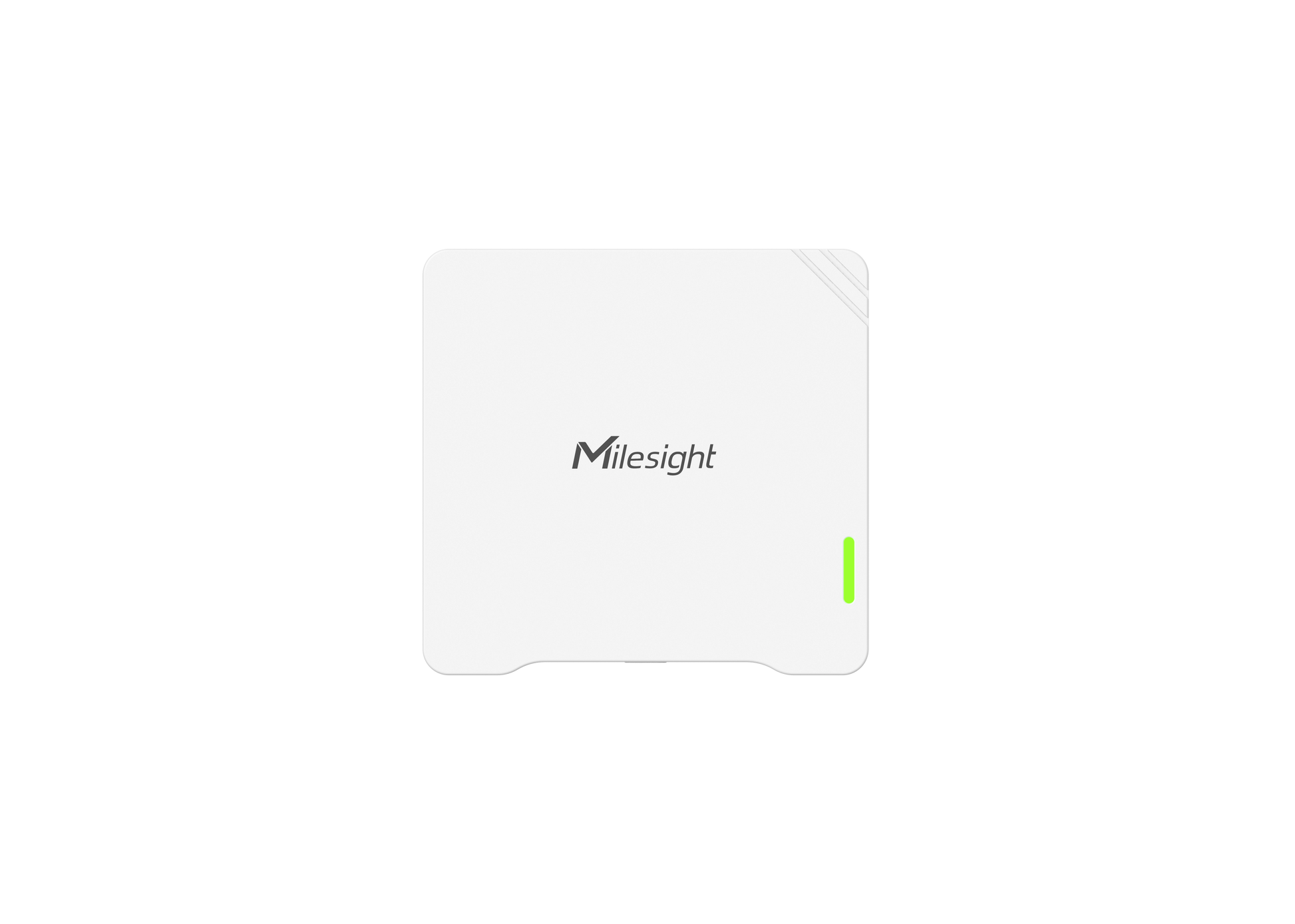

AM102L Indoor IAQ Sensor
AM102L Indoor IAQ Sensor
Regular price
$103.00 AUD
Regular price
Sale price
$103.00 AUD
Unit price
/
per
Couldn't load pickup availability
Description
AM102L 2-in-1 IAQ LoRaWAN Temperature & Humidity Sensor (Compact Version)
- Temperature and Humidity Detection
- No Display - Ultra-Compact Design
- Traffic Light Status Indicator
- Wireless Installation with Anti-theft Protection
- Hibernation Mode for Ultra-Low Power Consumption
- Extended Battery Life up to 9 Years
The AM102L delivers the same precision temperature and humidity monitoring as the AM102 in a streamlined, display-free design. This compact sensor utilizes LoRaWAN® technology for long-range wireless communication, focusing on efficient data collection and transmission while maximizing battery life for extended autonomous operation.
Streamlined IAQ Monitoring
Provides accurate real-time temperature and humidity measurements in a compact form factor optimized for discrete installation.
- Traffic Light Status Indicator for essential visual feedback
- Compact design without display for unobtrusive monitoring
Enhanced Battery Performance
Without the power requirements of an E-ink display, the AM102L achieves exceptional battery efficiency for extended deployment periods.
Hibernation Mode for Maximum Efficiency
- Extended hibernation capabilities during periods of non-use for superior power conservation
- Automatic data collection suspension during hibernation mode for minimal power consumption
LoRaWAN® Technology
- Extended Range: Data transmission up to 2 km in urban areas and 15 km in rural environments
- Universal Compatibility: Compliant with standard LoRaWAN® gateways and network servers
Technical Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Temperature Sensor | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | -20°C ~ 60°C |
| Accuracy | ± 0.2°C |
| Resolution | 0.1°C |
| Humidity Sensor | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | 0% RH~ 100% RH |
| Accuracy | ± 2% RH |
| Resolution | 0.5% RH |
| Display & Configuration | |
| Display | Not Supported |
| Button | 1 × Power Button |
| LED | 1 × Status Indicator |
| Configuration | Mobile App via NFC |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl? Replaceable Batteries |
| Battery Life (10 min interval, 25°C) | Over 9 Years |
| Operating Temperature | -20°C ~ 60°C |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) |
| Installation | Wall Screw Mounting, 3M Tape Mounting |
