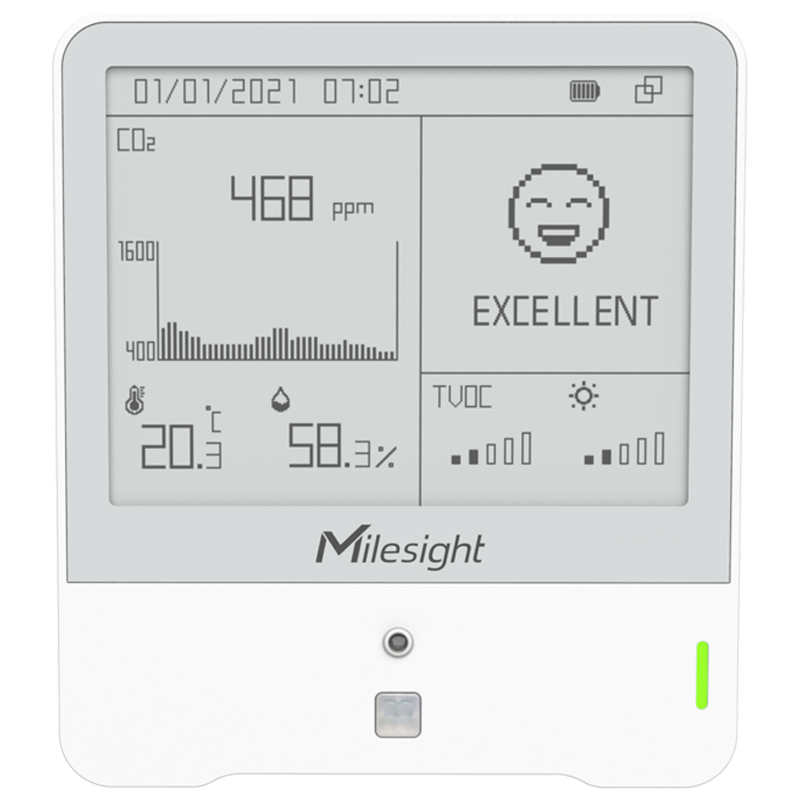

AM307 Indoor Amibience Monitoring Sensor

AM307 Indoor Ambience Monitoring Sensor

• 7-in-1 Sensor Integration
• 4.2 Inch E-ink Display
• Traffic Light Status Indicator
• Built-in Buzzer Alarm
• LoRaWAN® Connectivity
• NFC Configuration

The AM307 is a comprehensive 7-in-1 indoor ambience monitoring sensor featuring temperature, humidity, PIR motion detection, light level measurement, TVOC, barometric pressure, and CO2 monitoring. With its prominent 4.2-inch E-ink display, users can instantly view real-time environmental conditions with clear emoticon indicators for air quality status.

Equipped with traffic light LED indicators and an integrated buzzer, the AM307 provides immediate visual and audible alerts when air quality thresholds are exceeded. The device operates on LoRaWAN® technology for long-range wireless communication and features NFC for simple smartphone configuration. Battery-powered operation ensures up to several years of autonomous monitoring.

Key Features:

• Temperature & Humidity Monitoring
• PIR Motion Detection
• Light Level Sensing (0-60,000 Lux)
• TVOC Air Quality Measurement
• CO2 Detection (400-5,000 ppm)
• Barometric Pressure Monitoring
• 4.2" E-ink Display with Multiple View Modes
• Traffic Light LED & Buzzer Alerts
• 10-Year Battery Life
• Wall Mount Installation

Documentation:

AM300 Series Datasheet

AM300 Series User Guide
