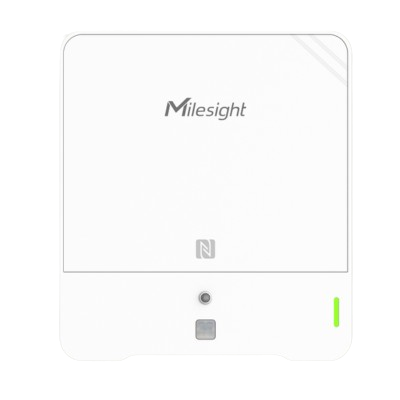

AM308L Indoor Amibience Monitoring Sensor

AM308L Indoor Ambience Monitoring Sensor (Compact Version)

• 9-in-1 Sensor Integration
• No Display - Streamlined Design
• PM2.5 & PM10 Particulate Monitoring
• Traffic Light Status Indicator
• Type-C Power Option
• LoRaWAN® Connectivity

The AM308L combines comprehensive 9-in-1 environmental monitoring in a compact, display-free form factor. This advanced sensor includes all the monitoring capabilities of the AM308 - temperature, humidity, PIR motion, light levels, TVOC, barometric pressure, CO2, PM2.5, and PM10 - while maintaining a streamlined design optimized for discrete installation.

Ideal for applications requiring comprehensive air quality monitoring without visual displays, the AM308L provides complete environmental data through LoRaWAN® connectivity. Traffic light LED indicators and buzzer alerts ensure critical threshold notifications, while Type-C power support enables continuous operation for mission-critical monitoring in healthcare, educational, and industrial facilities.

Key Features:

• Temperature & Humidity Monitoring
• PIR Motion Detection
• Light Level Sensing (0-60,000 Lux)
• TVOC Air Quality Measurement
• CO2 Detection (400-5,000 ppm)
• Barometric Pressure Monitoring
• PM2.5 & PM10 Particulate Detection (0-1,000 ?g/m³)
• Compact Design without Display
• Traffic Light LED & Buzzer Alerts
• Type-C Power Support

Documentation:

AM300 Series Datasheet

AM300 Series User Guide
