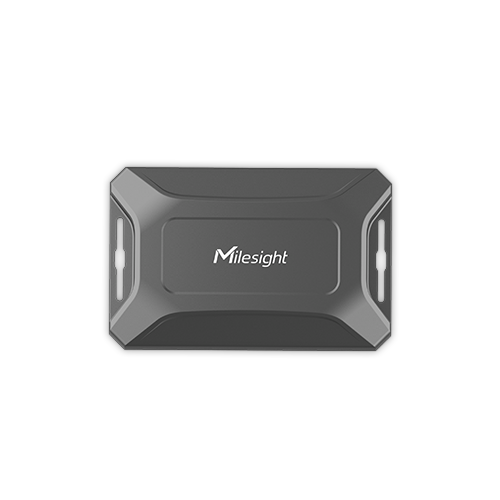

AT101 Asset Tracker

Description

AT101 is a rugged, IP67-rated outdoor LoRaWAN® tracker designed for long-term asset tracking. Combining GNSS and Wi-Fi access point scanning, it delivers high-accuracy positioning and supports a wide range of use cases like asset protection, logistics, and industrial monitoring.

• Highly Accurate GNSS Positioning with CEP 5m
• Wi-Fi Access Point MAC Scanning for Indoor Location
• Geofencing and Real-Time Location Monitoring
• Supports Motion, Periodic, and Timed Reporting Modes
• Built-in Tilt and Temperature Sensors
• Over 15 Years Battery Life (2 Location Updates/Day)
• Easy NFC and Bluetooth Configuration
• IP67 & IK09 Rated for Harsh Environments

Applications

• Outdoor Asset & Equipment Tracking
• Smart Logistics & Fleet Monitoring
• Remote Infrastructure Monitoring
• Geofencing with Notification Alerts

Technical Specifications

Wireless Transmission

• Protocol: LoRaWAN® (Class A, OTAA/ABP)
• Frequency: CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
• Tx Power: 16 dBm (868 MHz), 20 dBm (915 MHz), 19 dBm (470 MHz)
• Sensitivity: -137 dBm @ 300bps

GNSS Positioning

• Accuracy (CEP): 5.0 m (Line of Sight)
• Resolution: Latitude/Longitude: 0.0001, Altitude: 1 m
• Time to First Fix: Cold Start: 37s, Hot Start: 1s
• Sensitivity: Tracking: -167 dBm, Cold Start: -148 dBm

Wi-Fi Positioning

• Method: Scans nearby APs (BSSID, RSSI), no Wi-Fi connection required
• Standard: IEEE 802.11 b/g/n (2.4 GHz)

Sensors

• Tilt Detection: Normal / Tilt
• Temperature Range: -40°C ~ +125°C
• Temperature Resolution: 0.1°C

Operation

• Power & Configuration: Internal Button, NFC, Bluetooth® 5.3

Power & Battery

• Battery Type: 4 × 2700 mAh ER14505 Li-SOCl? (Replaceable)
• Battery Life (25°C):
  • 2 updates/day: 15+ years
  • 10 updates/day: 8+ years
  • Hourly updates: 4+ years

Physical Characteristics

• Ingress Protection: IP67
• Impact Resistance: IK09
• Dimensions: 110 × 70 × 30 mm
• Weight: 202 g (with batteries)
• Installation: Wall screw, 3M tape, or cable tie mounting
• Material & Color: PC, Black
