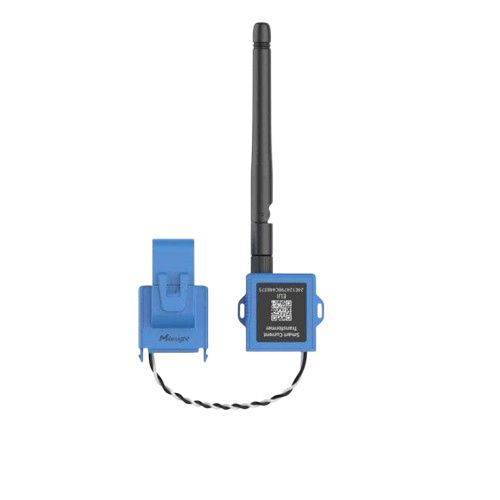

CT101 Current Transformer

Name: CT101 Current Transformer
Brand: Milesight
SKU: EB-045
Price: 170.00 AUD
Availability: InStock

$170.00 AUD

Sale Sold out

Quantity

Description

The Milesight CT10x series offers a non-invasive, wireless solution for real-time current monitoring. Available in two models — CT101 (100A) and CT103 (300A) — it allows accurate measurement of RMS current and ampere-hour accumulation with LoRaWAN® connectivity. Ideal for energy audits, smart factories, and industrial current tracking without circuit rewiring.

Split-Core Design for Non-Invasive Installation
Real-Time Ampere-Hour Tracking at 1-Second Intervals
High Sampling Rate: 3.3kHz for Accurate Measurement
Cable-Free, Compact, and Easy to Deploy
LoRaWAN® Wireless Transmission with Long Range
Two Models: CT101 (100A) & CT103 (300A)
Self-Powered via Induced Current
Status LED & USB-C Configuration Port

Applications

Energy Usage Analysis & Auditing
Industrial Equipment Monitoring
Preventive Maintenance via Irregular Current Alerts
Facility Load Balancing and Optimization

Model Options

CT101: 1–100 A detection range
CT103: 2–300 A detection range

Specifications (Common)

Detection Parameter: RMS Current
Sampling Frequency: 3.3 kHz
Working Frequency: 50–60 Hz
Accuracy: ±1%
Resolution: 1 mA
Power Supply: Induced Current (Self-powered)
Operating Temperature: -20°C ~ +70°C
Relative Humidity: ?95% (Non-condensing)
Material: Black Nylon PA66 (UL94 V2)
Ingress Protection: IP30
Installation: Suspend on Testing Conductor
Dimensions: 86.5 × 31 × 37.4 mm
Weight: 85.65 g

Wireless Specifications

Protocol: LoRaWAN® (OTAA/ABP, Class A)
Frequency Bands: CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923-1/2/3/4
Tx Power: 16 dBm (868 MHz), 22 dBm (915 MHz), 19 dBm (470 MHz)
Sensitivity: -137 dBm
Antenna: 1 × SMA Connector (50?, Female)
