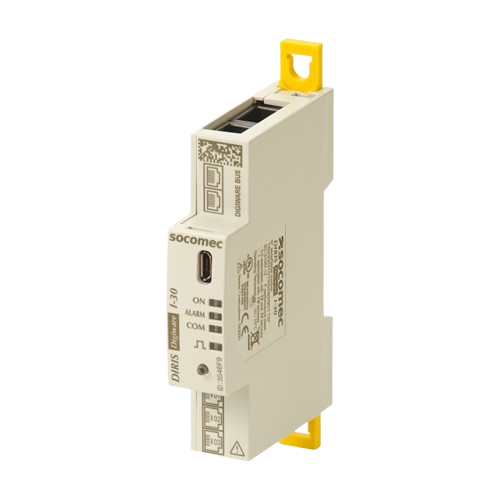

DIRIS Digiware I-30
DIRIS Digiware I-30
Regular price
$495.00 AUD
Regular price
Sale price
$495.00 AUD
Unit price
/
per
Couldn't load pickup availability
Description
The DIRIS Digiware I-30 is a DIN-rail mounted current acquisition module designed to support multi-circuit energy metering as part of the DIRIS Digiware system. It is ideal for commercial and industrial applications where precise, space-efficient, and scalable energy monitoring is required.
Key Features:
- Monitors one three-phase load or three single-phase loads simultaneously
- High measurement accuracy:
- Class 0.2 (with Digiware system)
- Class 0.5 (with TE/iTR/TF sensors)
- Class 1 (with TR sensors)
- Plug & Play installation using RJ12 (current sensors) and RJ45 (module interconnect) connectors
- Compact 18 mm DIN-rail footprint
- RS485 Modbus communication support
Technical Specifications:
| Current Inputs: | 3 (RJ12) |
| Sampling Frequency: | 10,000 Hz |
| Supply Voltage: | 24 V DC |
| Operating Temperature: | -10°C to +70°C |
| Storage Temperature: | -25°C to +70°C |
| Dimensions: | 18 mm (W) × 90 mm (H) × 65 mm (D) |
| Ingress Protection: | IP20 (front) |
| Communication: | RS485 Modbus |
| Standards: | IEC 61557-12, UL 61010-1, CSA-C22.2 No. 61010-1, ANSI C12.20 |
Environmental Impact:
- Climate change impact (cradle to grave): 26 kg CO?-eq
- Climate change impact (cradle to gate): 7 kg CO?-eq
For more details, refer to the official datasheet.
