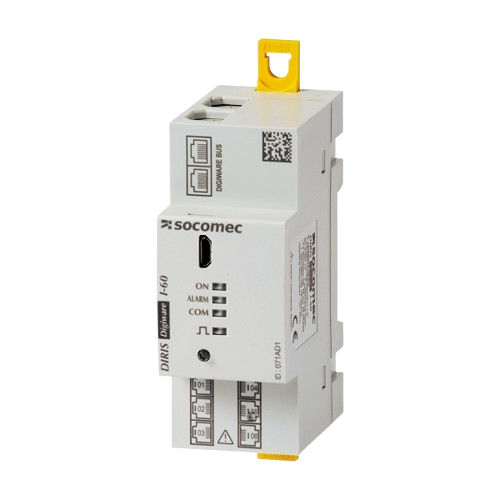

DIRIS Digiware I-60
DIRIS Digiware I-60
Regular price
$795.00 AUD
Regular price
Sale price
$795.00 AUD
Unit price
/
per
Couldn't load pickup availability
Description
The DIRIS Digiware I-60 is a DIN-rail mounted current acquisition module designed for multi-circuit energy metering within the DIRIS Digiware system. It features six RJ12 current inputs, allowing for the monitoring of up to two three-phase or six single-phase circuits. The module supports quick and error-free connections to current sensors, with automatic detection of sensor rating and current flow direction, ensuring reliable measurements. Its compact design facilitates installation close to the loads, enhancing measurement accuracy and system flexibility.
Key Features
- Multi-circuit monitoring: Supports up to 2 three-phase or 6 single-phase circuits.
- High accuracy: Class 0.2 (DIRIS Digiware class only), Class 0.5 with TE, iTR, or TF sensors, and Class 1 with TR sensors.
- Compact design: 36 mm width, 90 mm height, and 65 mm depth.
- Plug & Play: RJ12 and RJ45 connections for easy integration and expansion.
- Advanced features: PreciSense, VirtualMonitor, and AutoCorrect technologies for enhanced performance and reliability.
Specifications
| Parameter | Value |
|---|---|
| Model | I-60 |
| Reference | 48290112 |
| Application | Metering |
| Number of Current Inputs | 6 |
| Supply Voltage | 24 V DC |
| Sampling Frequency | 10,000 Hz |
| Communication Protocol | Modbus |
| Mounting | DIN rail |
| Dimensions (W x H x D) | 36 mm x 90 mm x 65 mm |
| Ingress Protection | IP20 |
| Operating Temperature | -10°C to +70°C |
| Standards Compliance | IEC 61557-12, UL 61010, ANSI C12.20 |
