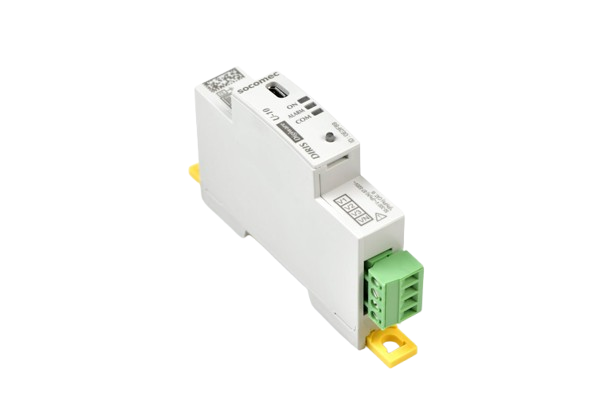

DIRIS Digiware U-10

Description

The DIRIS Digiware U-10 is an AC voltage acquisition module designed for high-precision metering applications within the DIRIS Digiware system. It measures phase-to-neutral and phase-to-phase voltages across a wide range, ensuring accurate voltage monitoring in various electrical installations.

Key Features:

• Measures AC voltages from 87 V to 520 V (L-L) and 50 V to 300 V (L-N)
• Suitable for 3-phase systems
• Compact DIN-rail mountable design
• Digital display for real-time voltage readings
• Compliant with IEC and UL standards
• Operating temperature range: -10°C to +55°C

Technical Specifications:

• Nominal Voltage: 87–520 V AC (L-L), 50–300 V AC (L-N)
• Measurement Range: 50–300 V AC (L-N), 87–520 V AC (L-L)
• Number of Phases: 3
• Display Type: Digital
• Mounting: DIN-rail
• Dimensions: 90 mm (H) x 18 mm (W) x 65 mm (D)
• Operating Temperature: -10°C to +55°C
• Conformity: IEC, UL

Applications:

Ideal for integration into the DIRIS Digiware system for precise voltage monitoring in industrial and commercial electrical installations.

Documentation:

• Datasheet
