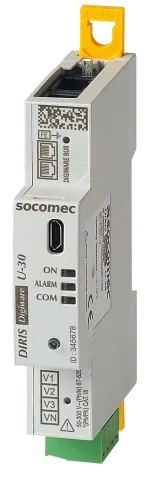

DIRIS Digiware U-30
DIRIS Digiware U-30
Regular price
$800.00 AUD
Regular price
Sale price
$800.00 AUD
Unit price
/
per
Couldn't load pickup availability
Description
The DIRIS Digiware U-30 is an AC voltage acquisition module designed for advanced electrical analysis across your entire system. It integrates seamlessly into the DIRIS Digiware architecture, collecting and transmitting all voltage data through a Digiware RJ45 Bus, which also supplies power and communication to other connected modules.
Key Features
- Measures system-wide AC voltage: 87 to 520 VAC (L-L)
- High precision: Voltage class 0.2, Frequency class 0.02
- Compact dimensions: 18 mm (W) × 90 mm (H) × 65 mm (D)
- Sampling frequency: 10,000 Hz
- 4 voltage measurement inputs
- Modbus protocol support
- Power supply: 0–24 VDC
- Safe and standards-compliant: IEC 61557-12, UL 61010
Technical Specifications
| Model | U-30 |
| Rated Voltage | 87–520 VAC (L-L) |
| Frequency Range | 45–65 Hz |
| Voltage Inputs | 4 |
| Protocol Support | Modbus (via RJ45 Digiware Bus) |
| Display | None (No local display) |
| Weight | 0.09 kg |
| Country of Origin | France |
Environmental & Sustainability
- Climate Impact (Cradle to Gate): 7 kg CO? eq.
- Climate Impact (Cradle to Grave): 33 kg CO? eq.
- Conforms to PEP standard: SOCO-00090-V01.01-EN
Compliance & Classification
- Standards: IEC 61557-12, UL 61010
- ETIM Class: EC002301
- UNSPSC: 83101808
- IGCC: 6042
Documentation:
