enLink Indoor Air Quality Monitor with Vape/Cigarette Smoke Detection and Ultrafine Particle Sensor
enLink Indoor Air Quality Monitor with Vape/Cigarette Smoke Detection and Ultrafine Particle Sensor
Couldn't load pickup availability
Description

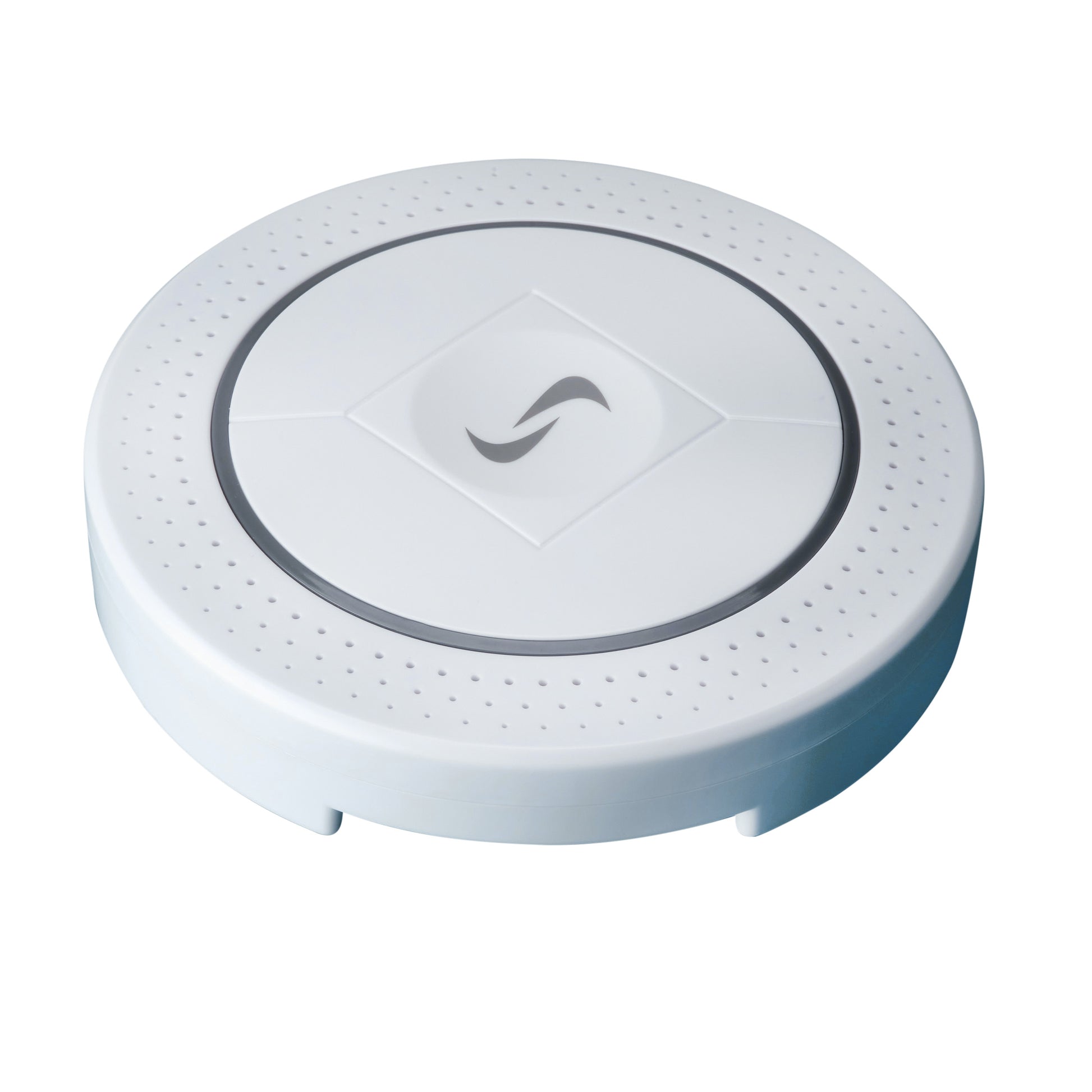

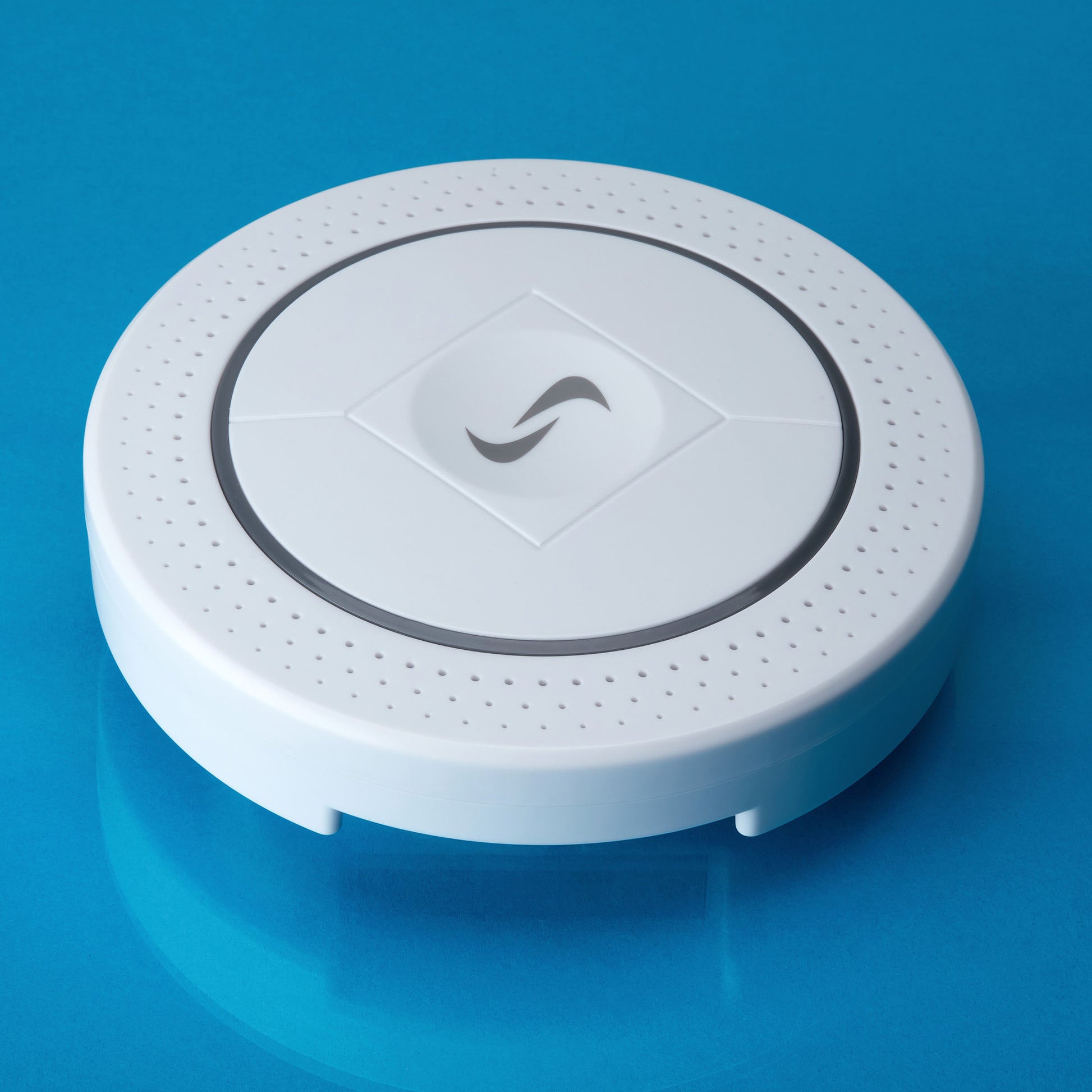

The enLink IAQ Vape is a specialized LoRaWAN-based sensor designed to detect cigarette smoke and vape aerosols in real-time. Created for schools, commercial buildings, public venues, and infrastructure environments, it delivers accurate detection of smoking or vaping events in restricted indoor areas—particularly where surveillance cameras are not permitted, such as restrooms.
This discreet, wall-mounted monitor also captures critical indoor air quality metrics like temperature, humidity, pressure, and ultrafine particulates (down to PM0.1). With flexible power options (12–24V DC or PoE splitter), a wide wireless transmission range, and no recurring subscription fees, the enLink IAQ Vape is a cost-effective and powerful compliance tool for vape and smoke control.
Key Features:
- Real-time detection of vaping and cigarette smoke events
- Ultrafine particle detection down to PM0.1
- Alerts for event count and vape/smoke distinction
- LoRaWAN transmission up to 16 km (1–2 km indoor)
- Supports WELL® and RESET® compliance objectives
- Discrete and camera-free enforcement solution for restricted areas
- External 12–24V DC or PoE-powered installation
- No subscriptions or recurring fees required
Technical Specifications:
| Component Details | |
|---|---|
| Temperature Accuracy | ±0.2°C (typical), Range: -20°C to +50°C |
| Humidity Accuracy | ±2% RH (typical), Range: 0–100% RH (non-condensing) |
| Barometric Pressure Accuracy | ±0.12 hPa (≈ ±1 m in altitude) |
| Ozone Sensor* | Range: 0–2 ppm, Accuracy: ±0.10% @ 200 ppb |
| Particulate Matter | Measures: PM0.1, PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10 |
| Sound Sensor* | Sensitivity: -26 dB FS ±1 dB, Dynamic Range: 91 dBA |
| VOC Sensor | VOC IAQ Index (0–500), bVOC ppm |
| CO₂ Sensor | Accuracy: ±(30 ppm +3% of reading), Range: 0–5,000 ppm |
| Gas Sensors* | Includes CH₂O, CO, NO₂, SO₂, H₂S, O₂ (Accuracy: ±5% F.S., CH₂O ±10%) |
| Power Supply | External 12–24V DC or via PoE splitter |
| Wireless Protocol | LoRaWAN |
| Wireless Range | Up to 16 km (1–2 km indoor penetration) |
*Optional sensors depending on model
Applications
- Vape and cigarette smoke monitoring in restrooms and non-camera zones
- Compliance enforcement in schools, universities, and public buildings
- Retail centers, stadiums, and commercial facilities
- Transport hubs, infrastructure environments, and data centers
- General air quality monitoring in shared indoor spaces
- WELL® and RESET® certification support
