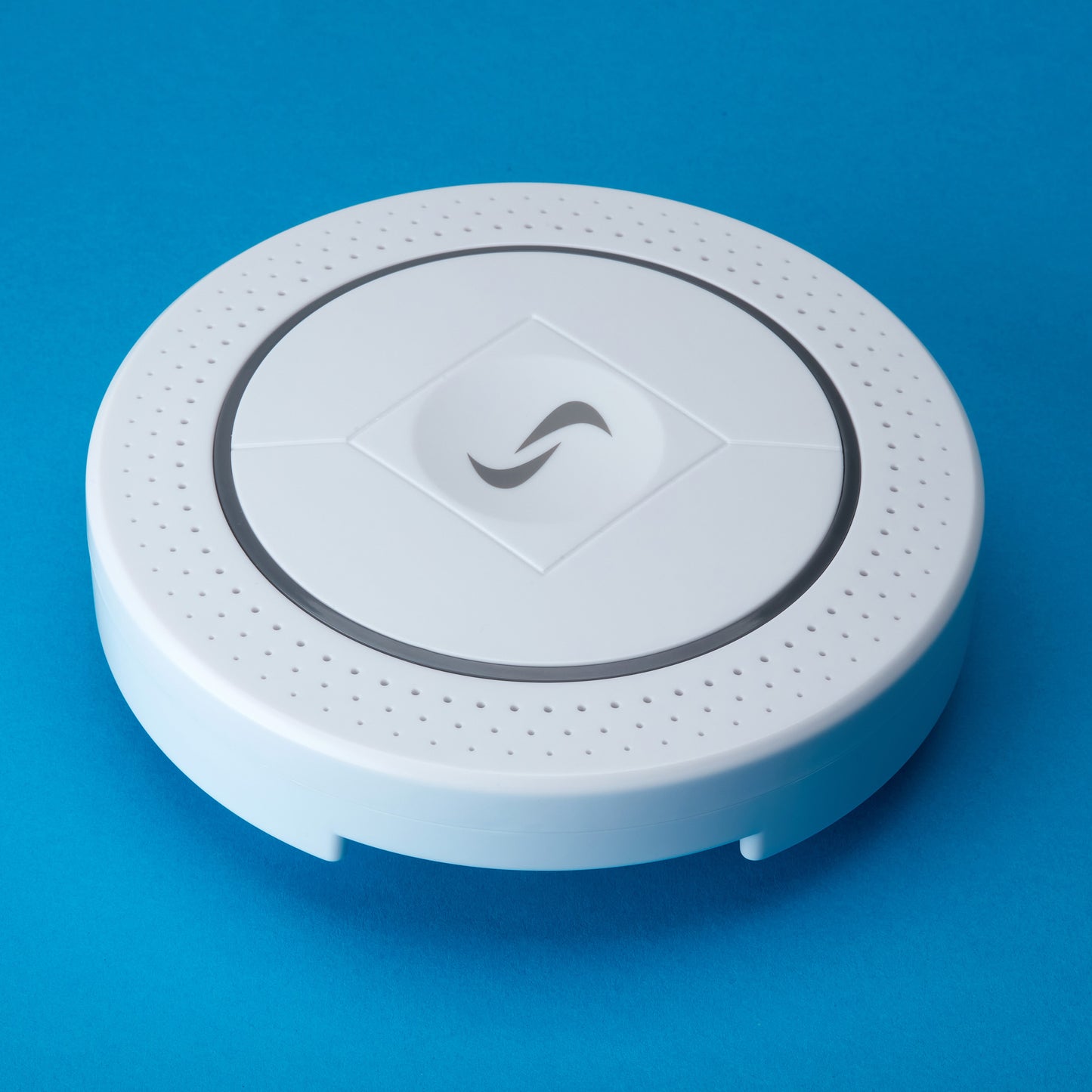

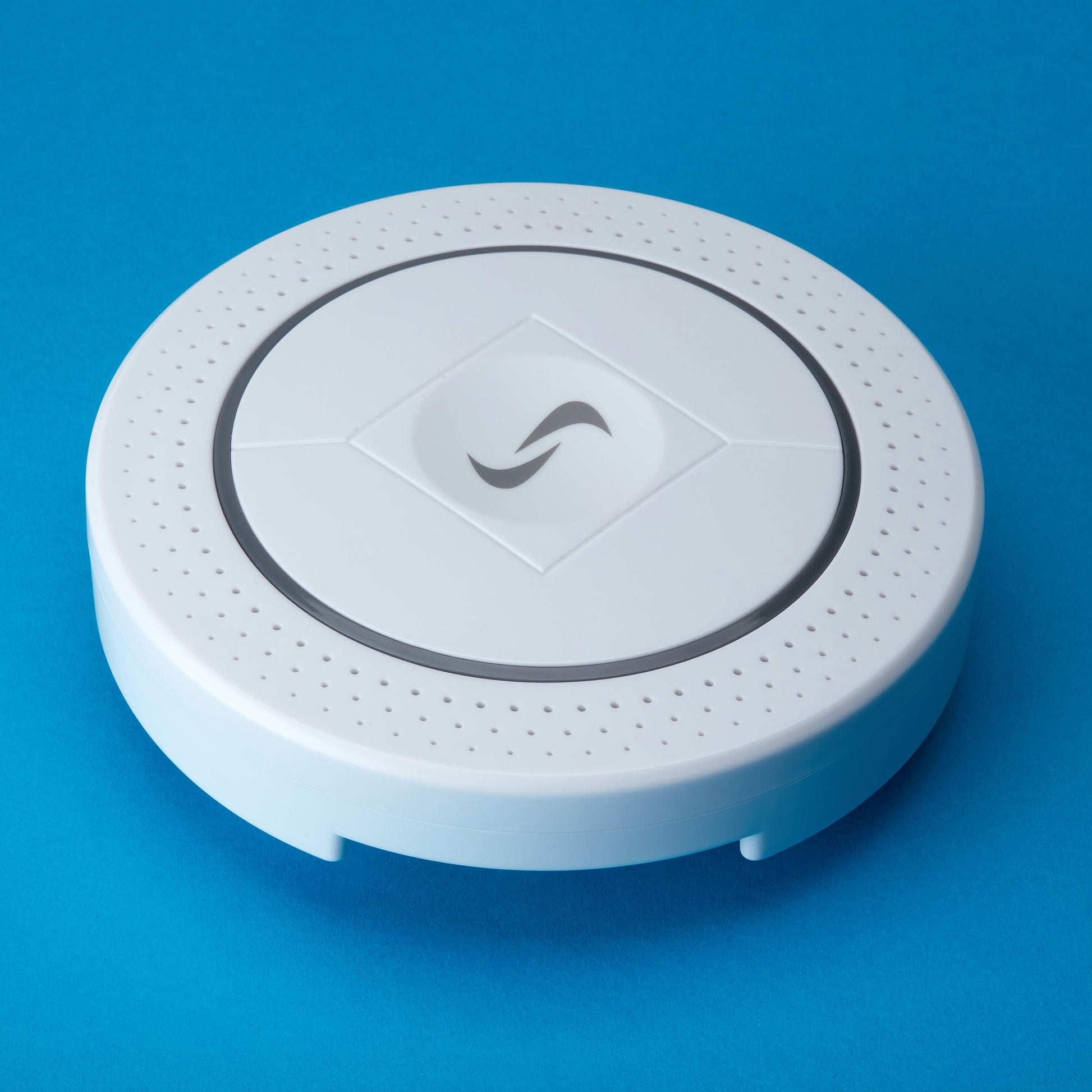

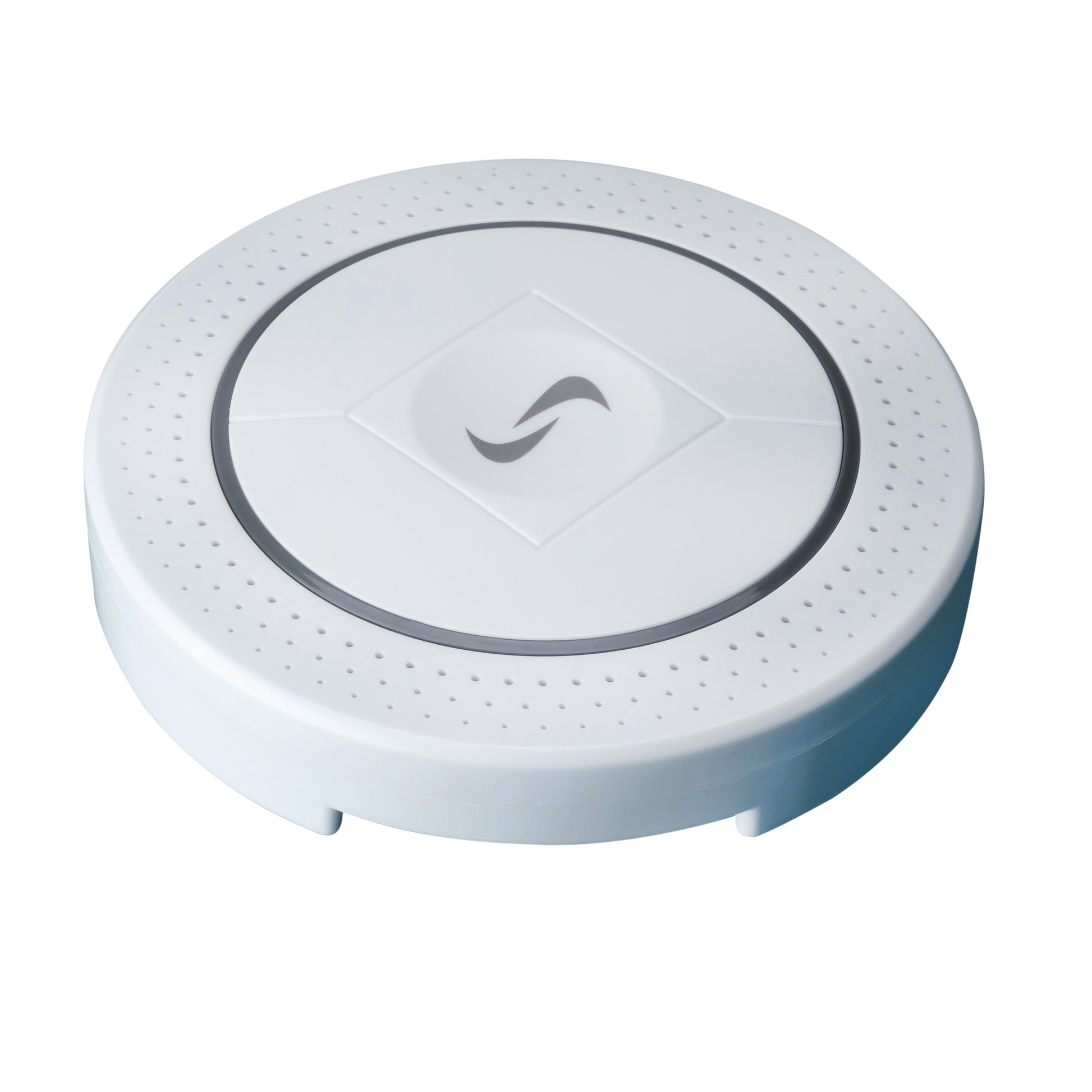

enLink ISO Cleanroom Air Quality Monitor with calibration to ISO 21501-4
enLink ISO Cleanroom Air Quality Monitor with calibration to ISO 21501-4
Couldn't load pickup availability
Description
The enLink IAQ ISO is a precision-calibrated LoRaWAN indoor air quality monitor engineered for ISO Class 7–9 cleanrooms and ultra-low concentration environments. Individually calibrated to ISO 21501-4 standards, each unit includes a traceable calibration certificate for particle count accuracy in regulated environments.
Designed and manufactured in the UK, this device monitors a wide range of parameters including temperature, humidity, CO₂, VOCs, ozone, barometric pressure, sound, and ultrafine particulate matter down to PM0.1. It also supports a plug-in gas module to detect specific gases such as NO₂, SO₂, H₂S, CO, NH₃, and more.
With flexible installation via 12–24V DC or PoE, and LoRaWAN connectivity of up to 16 km, the enLink IAQ ISO provides accurate data transmission without the need for repeaters—ideal for pharmaceutical, semiconductor, healthcare, and critical manufacturing settings.
Key Features:
- Individually calibrated to ISO 21501-4 cleanroom particle standards
- Particle size detection down to PM0.1 with high-resolution counting
- Supports optional plug-in gas sensor module (CH₂O, NO₂, CO, etc.)
- Wireless LoRaWAN communication up to 16 km (1–2 km building penetration)
- Externally powered via 12–24V DC or PoE splitter
- Compatible with enVision platform and third-party IoT dashboards
- Compact, cleanroom-friendly enclosure (168 × 47 mm)
- Designed and manufactured in the UK
Technical Specifications:
| Component Details | |
|---|---|
| Calibration Standard | ISO 21501-4 (Cleanroom compliant) |
| Particle Detection | PM0.1, PM0.3, PM0.5, PM1, PM2.5, PM5, PM10 |
| Temperature Sensor | Range: -20°C to +50°C; Accuracy: ±0.2°C (typical) |
| Humidity Sensor | Range: 0–100% RH (non-condensing); Accuracy: ±2% RH (typical) |
| Pressure Sensor | Barometric pressure monitoring included |
| CO₂ Sensor | Range: 0–5,000 ppm; Accuracy: ±(30 ppm +3%) |
| VOC Sensor | VOC IAQ Index (0–500), bVOC in ppm |
| Sound Sensor* | Sensitivity: -26 dB FS ±1 dB, Dynamic Range: 91 dBA |
| Ozone Sensor (O₃) | Optional sensor, Range: 0–2 ppm |
| Plug-in Gas Sensor Module* | Options: CH₂O, CO, NO₂, SO₂, H₂S, O₂, Cl₂, HCl, HCN, HF, H₂, NH₃ |
| Power Supply | 12–24V DC or Power over Ethernet (PoE) via splitter |
| Enclosure Dimensions | 168 × 47 mm (Compact form factor) |
| Wireless Protocol | LoRaWAN |
| Wireless Range | Up to 16 km outdoors; 1–2 km building penetration |
| Visualization | enVision and compatible IoT platforms |
*Optional sensor depending on configuration
Applications
- Cleanroom air quality compliance (ISO Class 7–9)
- Pharmaceutical and life sciences environments
- Semiconductor and electronics manufacturing
- Medical facilities and critical care zones
- R&D labs and biotech applications
- WELL® and RESET® certification support
