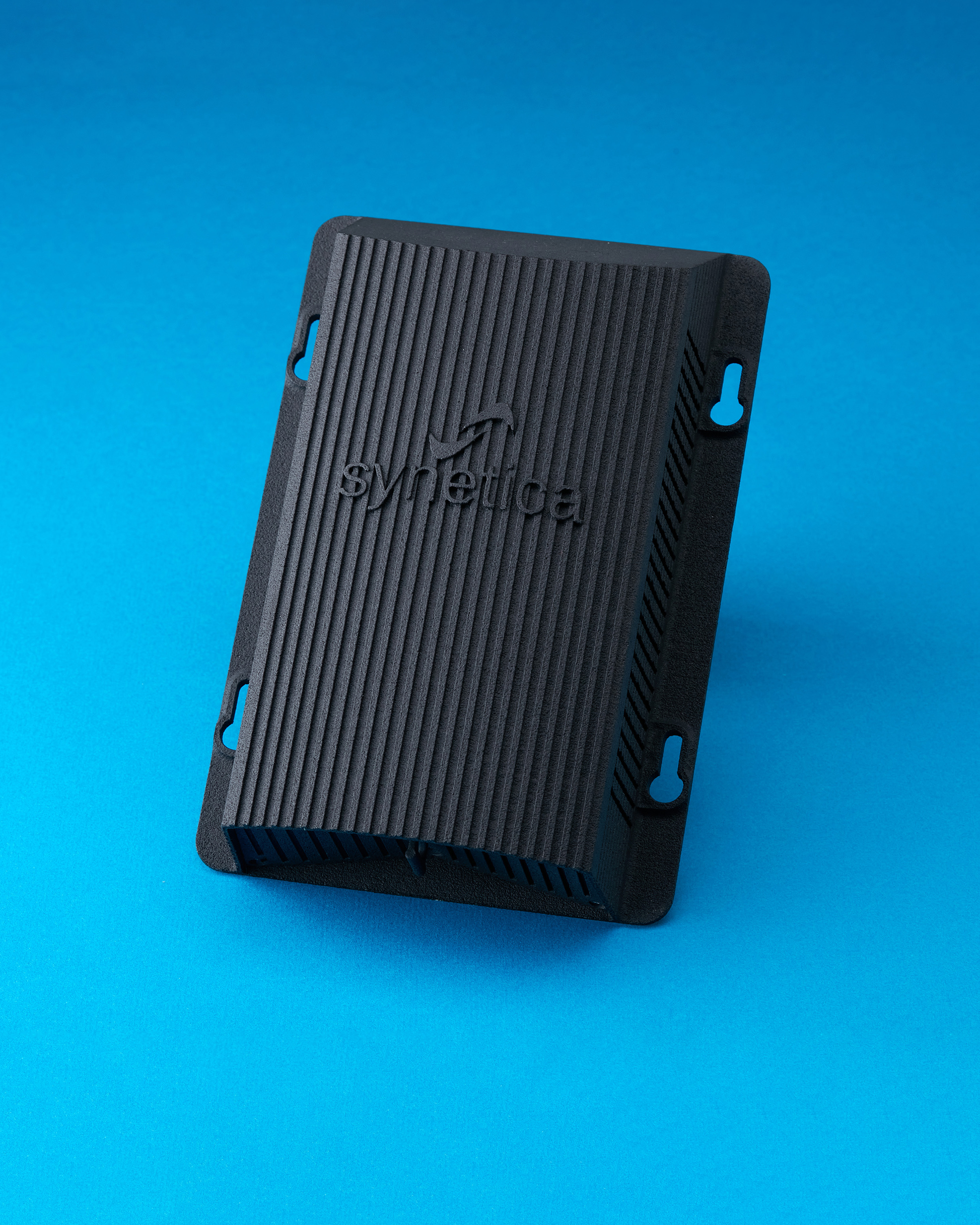

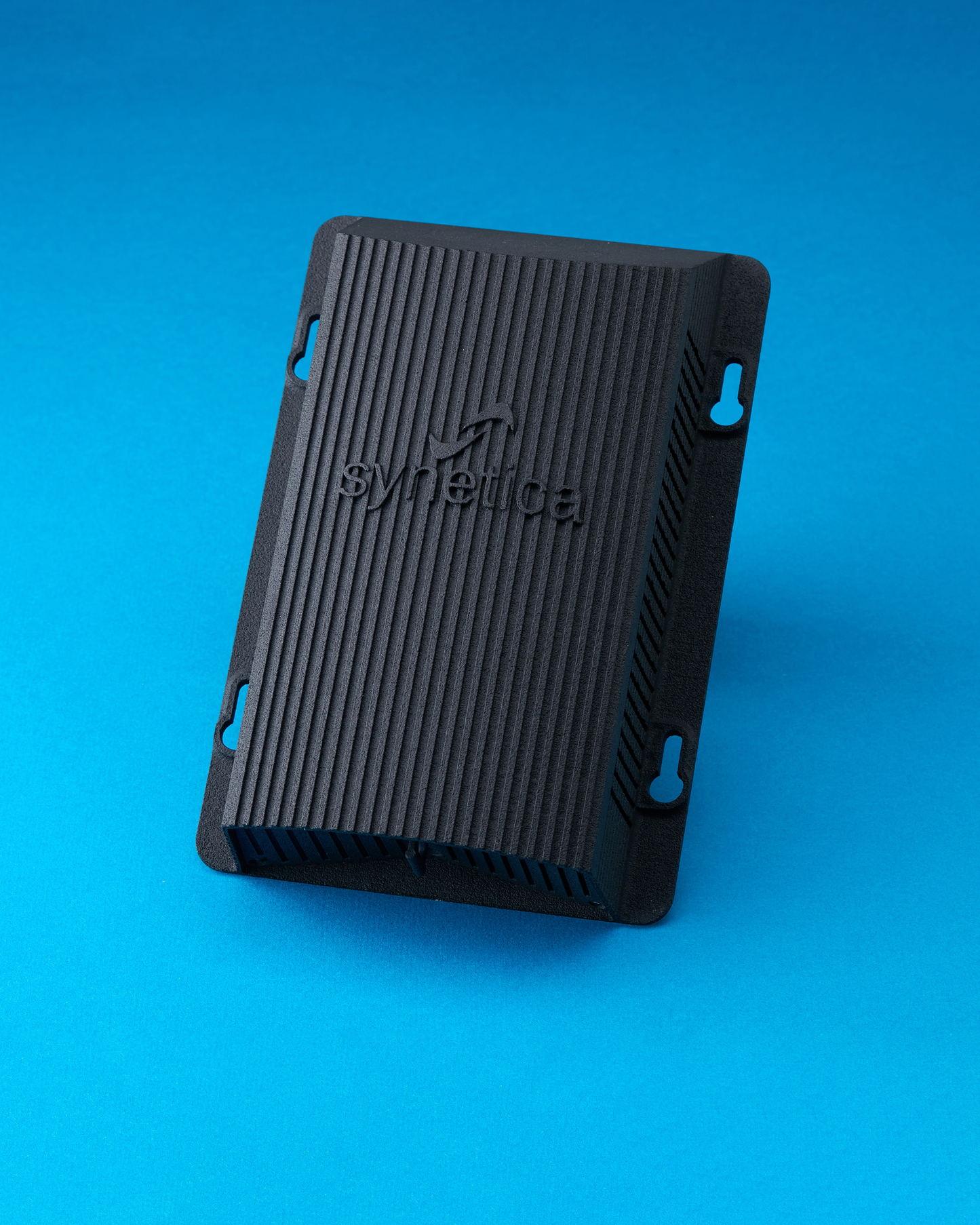

enLink OAQ - LoRaWAN Outdoor Air Quality Monitor
enLink OAQ - LoRaWAN Outdoor Air Quality Monitor
Couldn't load pickup availability
Description
The enLink OAQ is a rugged, high-accuracy LoRaWAN outdoor air quality monitor designed for continuous real-time measurement of key environmental parameters. Built for industrial, commercial, and public infrastructure applications, it delivers MCERTS-certified particulate readings along with critical gas and climate metrics.
Manufactured in the UK and engineered for harsh outdoor environments, the enLink OAQ supports flexible installation with battery, solar, or external power options. It transmits data wirelessly over LoRaWAN (up to 16 km) for seamless cloud integration—ideal for pollution monitoring, EPA compliance, and long-term air quality analytics.
Key Features:
- Continuous outdoor air quality monitoring across multiple parameters
- MCERTS certified particulate matter sensor (PM0.5 to PM10)
- Weatherproof and drift-free design with long instrument life
- Supports ozone, CO₂, VOCs, and optional gas sensors (CH₂O, NO₂, H₂S, etc.)
- LoRaWAN wireless communication up to 16 km range
- Flexible power options: battery, solar, or 12–24V DC
- EPA AQI reporting for ozone and NO₂ levels
- Subscription-free and enVision/IoT compatible
Technical Specifications:
| Component Details | |
|---|---|
| Temperature Sensor | Range: -40°C to +80°C; Accuracy: ±0.3°C (typical) |
| Humidity Sensor | Range: 0–100% RH (non-condensing); Accuracy: ±2% RH (typical) |
| Pressure Sensor | Range: 300–1100 hPa; Accuracy: ±0.12 hPa (relative), ±0.6 hPa (absolute) |
| Particulate Matter | MCERTS certified; Measures PM0.5, PM1, PM2.5, PM4, PM10 (EN 15267 compliant) |
| Ozone Sensor | Range: 0–2 ppm; Accuracy: ±10% @ 200 ppb; Resolution: 1 ppb |
| VOC Sensor | VOC IAQ Index (0–500), ppm (bVOC) |
| CO₂ Sensor | Range: 0–5000 ppm; Accuracy: ±(30 ppm + 3%) |
| Optional Gas Sensors | CH₂O, CO, NO₂, H₂S, SO₂, O₂ — Accuracy: ±5% F.S. (CH₂O ±10%) |
| EPA AQI Reporting | Based on O₃ and NO₂; Accuracy: ±15% (typical) |
| Power Supply | Battery, solar panel, or external 12–24V DC |
| Wireless Protocol | LoRaWAN |
| Wireless Range | Up to 16 km outdoors (1–2 km in-building) |
| Certifications | MCERTS, EN 15267 |
*Refer to product datasheet for expanded gas module options.
Applications
- Outdoor air quality monitoring for EPA and regulatory compliance
- Urban planning, pollution surveillance, and smart city projects
- Energy, transport, and infrastructure deployment zones
- Remote site monitoring with solar-powered options
- Smart industrial and manufacturing perimeter air tracking
- WELL®, RESET®, and environmental certification support
