Description

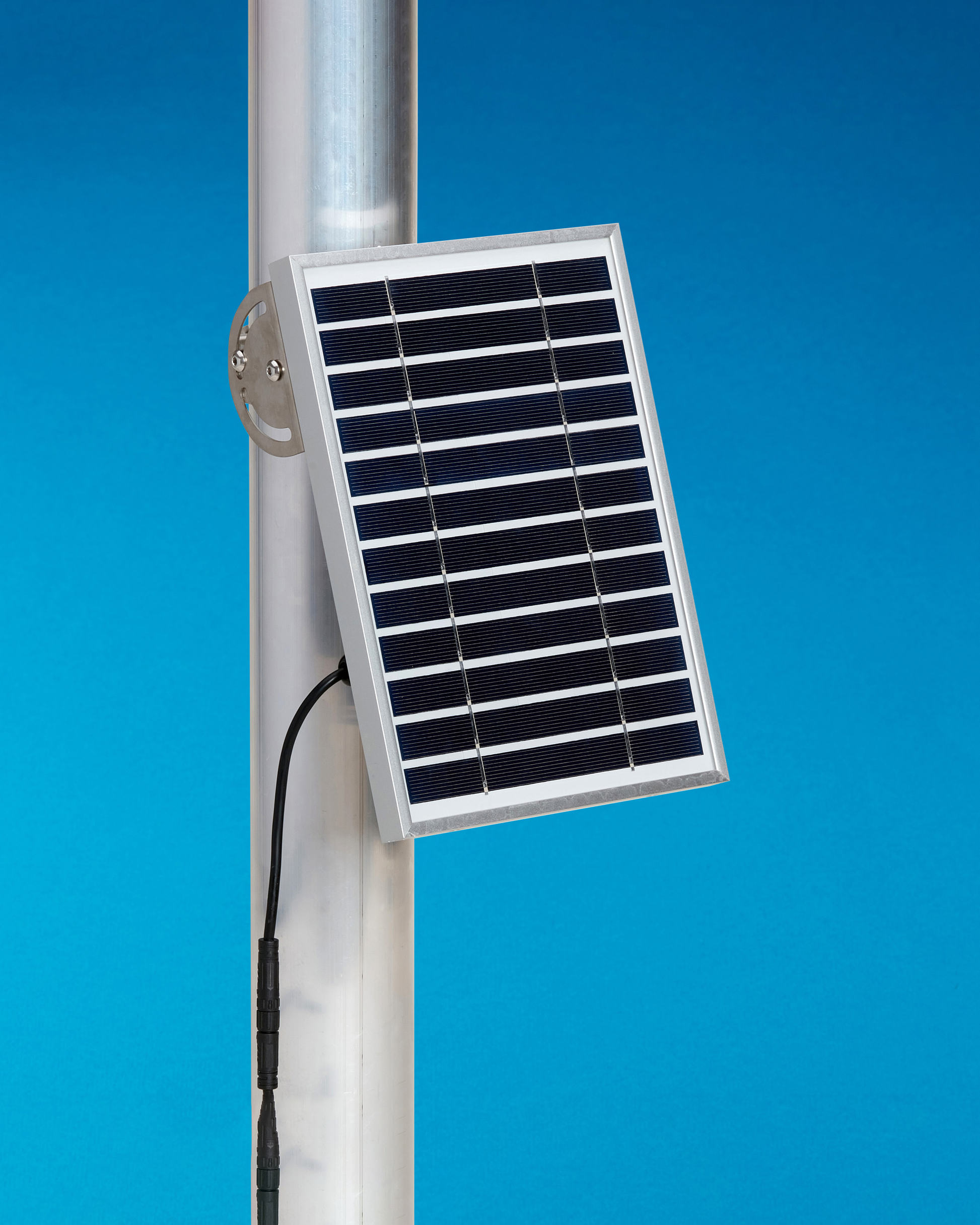

The enLink OAQ SPS is a compact, solar-powered energy module designed specifically for the enLink OAQ range of outdoor air quality monitors. Combining a high-efficiency solar panel and rechargeable lithium-ion battery bank, it provides continuous, maintenance-free operation even in remote or off-grid environments.
Ideal for locations where onboard batteries or wired power sources are not feasible, the OAQ SPS supports wall or pole mounting and includes built-in protection circuits to safeguard against over-discharge, reverse connection, overvoltage, and cold-weather charging. Built for resilience and environmental compliance, it ensures uninterrupted monitoring for critical outdoor air quality applications.
Key Features:
- Provides continuous power to enLink OAQ monitors via solar and lithium-ion storage
- Designed for locations where battery or external wired power is not viable
- Weatherproof IP65 enclosure for rugged outdoor environments
- High-capacity rechargeable battery bank with up to 6 months operation*
- Wall or pole mountable (stainless steel frame + U-bolt included)
- Protected against overcharging, over-discharge, freezing, and reverse polarity
- Designed and manufactured in the UK
Technical Specifications:
| Component Details | |
|---|---|
| Output Voltage | 3.6V / 5V DC (switchable) |
| Output Current | 0.1 A (max 0.3 A) |
| Battery Type | 4 × 18650 Lithium-ion (protected type recommended) |
| Battery Capacity | 2,000 mAh to 3,600 mAh per battery (model dependent); Up to 6 months runtime* |
| Protection | Over-voltage, over-discharge (<3V), reverse connection, and sub-zero charge prevention |
| Solar Panel | 5 Watts |
| Connection | Via provided cable |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Humidity Range | 0–100% RH (non-condensing) |
| Dimensions / Weight | 270 × 175 × 50 mm / 1060 g (excluding batteries) |
| Mounting Options | Wall mount or U-bolt pole mount (max diameter 75 mm) |
*Runtime depends on environment, sensor load, and settings.
Applications
- Remote or off-grid air quality monitoring deployments
- Outdoor environments without permanent power infrastructure
- Smart cities, public parks, schools, and recreation zones
- Utility, infrastructure, and roadside AQ installations
- Energy-efficient monitoring setups
