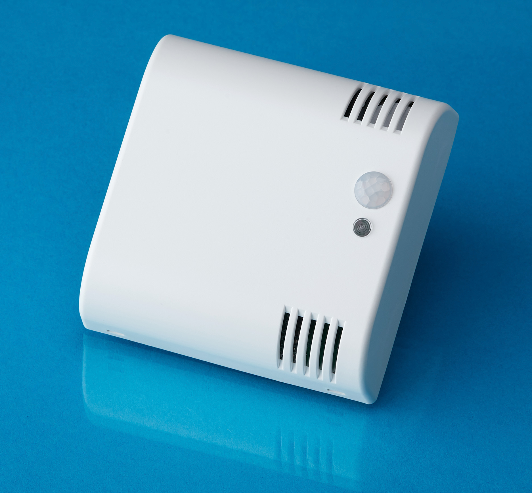

enLink Zone - LoRaWAN Environmental Sensor

$190.00 AUD

Sale Sold out

Variants Temperature + Humidity Temperature + Humidity + VOC's + Barometric Pressure Temperature + Humidity + Light Level (LUX) + VOC's + Barometric Pressures + Motion (PIR) Temperature + Humidity + Light Level (LUX) + VOC's + Barometric Pressure + CO2 Temperature + Humidity + Light Level (LUX) + VOC’s + Barometric Pressure + CO2 + Motion (PIR)

Quantity

Description

The enLink Zone is a modular LoRaWAN environmental sensor designed for real-time monitoring of indoor climate and air quality. Built for commercial, healthcare, retail, hospitality, and infrastructure applications, it enables continuous measurement of key environmental parameters to maintain energy efficiency and ensure occupant comfort.

Manufactured in the UK, the sensor supports multiple configurations depending on model, including temperature, humidity, VOCs, CO₂, barometric pressure, light levels, and motion detection (PIR). Data is transmitted wirelessly over LoRaWAN, enabling seamless integration with building management and smart facility systems .

Key Features:

High-accuracy temperature, humidity, VOC, CO₂, pressure, light, and motion sensing (model dependent)
Enables demand-controlled ventilation (DCV) via VOC and CO₂ sensing
Subscription-free data transmission over LoRaWAN (up to 16 km)
USB or LoRaWAN downlink configuration options
Supports WELL Building Standard® and air quality compliance strategies
Battery-powered operation with 3+ year life
Compact, discreet enclosure with flexible deployment
Designed and manufactured in the UK

Technical Specifications:

Component Details
Component Type	LoRaWAN Environmental Sensor
Temperature Accuracy	±0.2°C (typical), Repeatability ±0.1°C
Temperature Conversion Time	6.35 ms
Humidity Accuracy	±2% RH (typical), Repeatability ±0.1%
Humidity Response Time	15 seconds
Pressure Sensor*	±0.12 hPa, Range: 300–1100 hPa, Resolution: 0.18 Pa
Light Sensor*	0.01–83,000 lux, <4% error, 99% IR rejection, 4% light source variation
Presence Sensor (PIR)*	5 m detection distance, 82° horizontal, 94° vertical field
VOCs Sensor*	IAQ Index 0–500, Variability ±15%, Response Time 1s (t𝜏33-63%)
CO₂ Sensor*	NDIR, ±(30 ppm +3%), Range: 0–10,000 ppm, Response Time: 3 min (t90), >15 year lifespan
Power Source	2 × AA 3.6V Lithium Batteries
Battery Life	3+ years (model and usage dependent)
Wireless Protocol	LoRaWAN
Wireless Range	Up to 16 km
Configuration	USB and LoRaWAN downlink
Device Dimensions	80 × 80 × 25 mm
Certifications	CE, FCC, UKCA, ROHS

*Optional sensor depending on model

Applications

Commercial offices and facilities
Hospitals and healthcare environments
Educational institutions and classrooms
Retail stores and hospitality venues
Smart infrastructure and transport hubs
Energy optimization and WELL compliance programs
