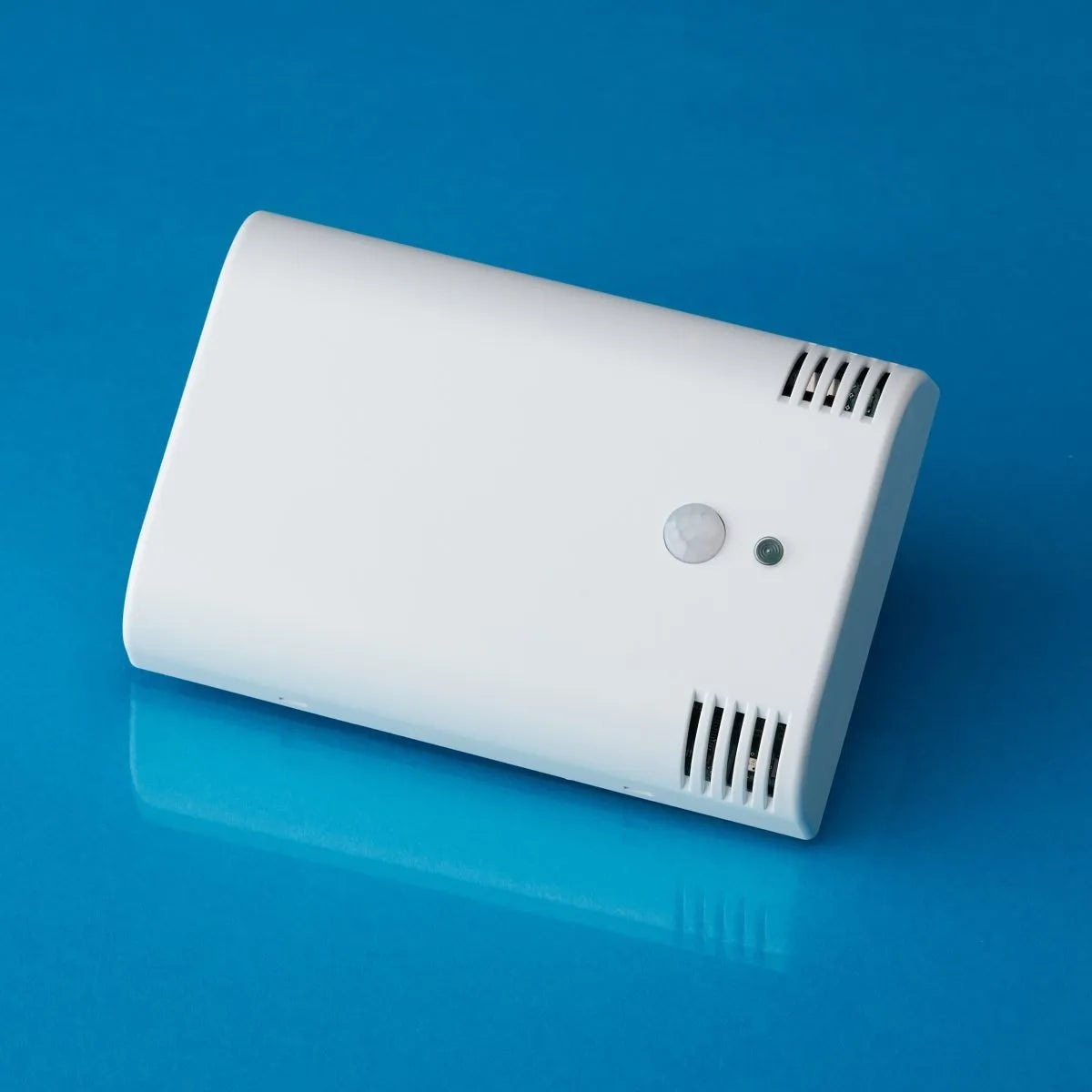

enLink Zone Plus - LoRaWAN Environmental Sensor
enLink Zone Plus - LoRaWAN Environmental Sensor
Couldn't load pickup availability
Description
The enLink Zone Plus is a high-performance LoRaWAN environmental sensor designed to deliver continuous real-time measurements of multiple indoor climate and air quality parameters. Tailored for commercial buildings, schools, hospitals, and infrastructure projects, it offers advanced sensing capabilities in a sleek, compact form.
Built on the trusted enLink platform, Zone Plus supports measurement of temperature, relative humidity, VOCs, barometric pressure, CO₂, light levels, motion, and optional sound monitoring — making it ideal for both air quality and noise compliance applications. It can be powered either by an external supply or user-replaceable lithium batteries and integrates seamlessly into smart building systems .
Key Features:
- Multi-parameter sensing: temperature, humidity, CO₂, VOCs, barometric pressure, light, motion, and sound*
- Enables demand-controlled ventilation (DCV) and noise mitigation strategies
- LoRaWAN wireless communication with up to 16 km range
- External power or battery-powered (user-replaceable)
- Subscription-free operation with easy USB or downlink configuration
- Supports WELL Building Standard® and environmental compliance schemes
- Designed and manufactured in the UK
Technical Specifications:
| Component Details | |
|---|---|
| Component Type | LoRaWAN Environmental Sensor |
| Temperature Accuracy | ±0.2°C (typical), Repeatability ±0.1°C |
| Temperature Conversion Time | 6.35 ms |
| Humidity Accuracy | ±2% RH (typical), Repeatability ±0.1% |
| Humidity Response Time | 15 seconds |
| Pressure Sensor | ±0.12 hPa, Range: 300–1100 hPa, Resolution: 0.18 Pa |
| Light Sensor | 0.01–83,000 lux, <4% error, 99% IR rejection, 4% light source variation |
| Presence Sensor (PIR)* | 5 m detection distance, 82° horizontal, 94° vertical field |
| VOCs Sensor | IAQ Index 0–500, Variability ±15%, Response Time 1s (t𝜏33-63%) |
| CO₂ Sensor* | NDIR, ±(30 ppm +3%), Range: 0–10,000 ppm, Response Time: 3 min (t90), >15 year lifespan |
| Sound Sensor* | Sensitivity: -26dB FS ±1dB, SNR: 65 dBA, Dynamic Range: 91 dBA, THD: 0.2% @ 105 dB SPL, Overload: 120 dB SPL |
| Power Supply | External power or 2 × AA 3.6V Lithium Batteries |
| Battery Life | 3+ years (depending on configuration) |
| Wireless Protocol | LoRaWAN |
| Wireless Range | Up to 16 km |
| Configuration | USB and LoRaWAN downlink |
| Device Dimensions | 80 × 120 × 25 mm |
| Certifications | CE, FCC, UKCA, ROHS |
*Optional sensor depending on model
Applications
- Commercial offices and facilities
- Healthcare, hospitals, and clinics
- Educational institutions and research labs
- Retail and hospitality indoor spaces
- Noise compliance and acoustic monitoring
- WELL Standard and green building strategies
