Description

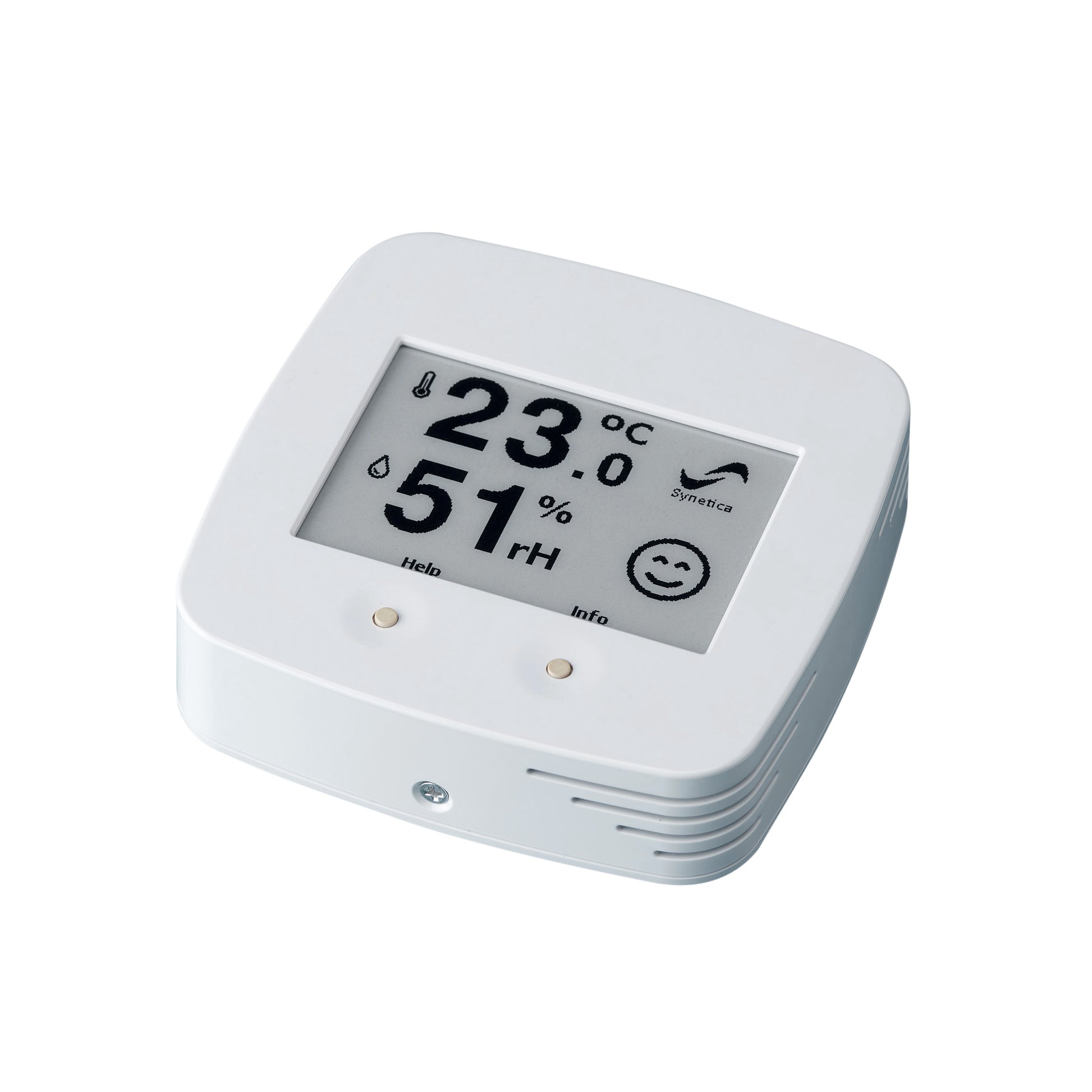

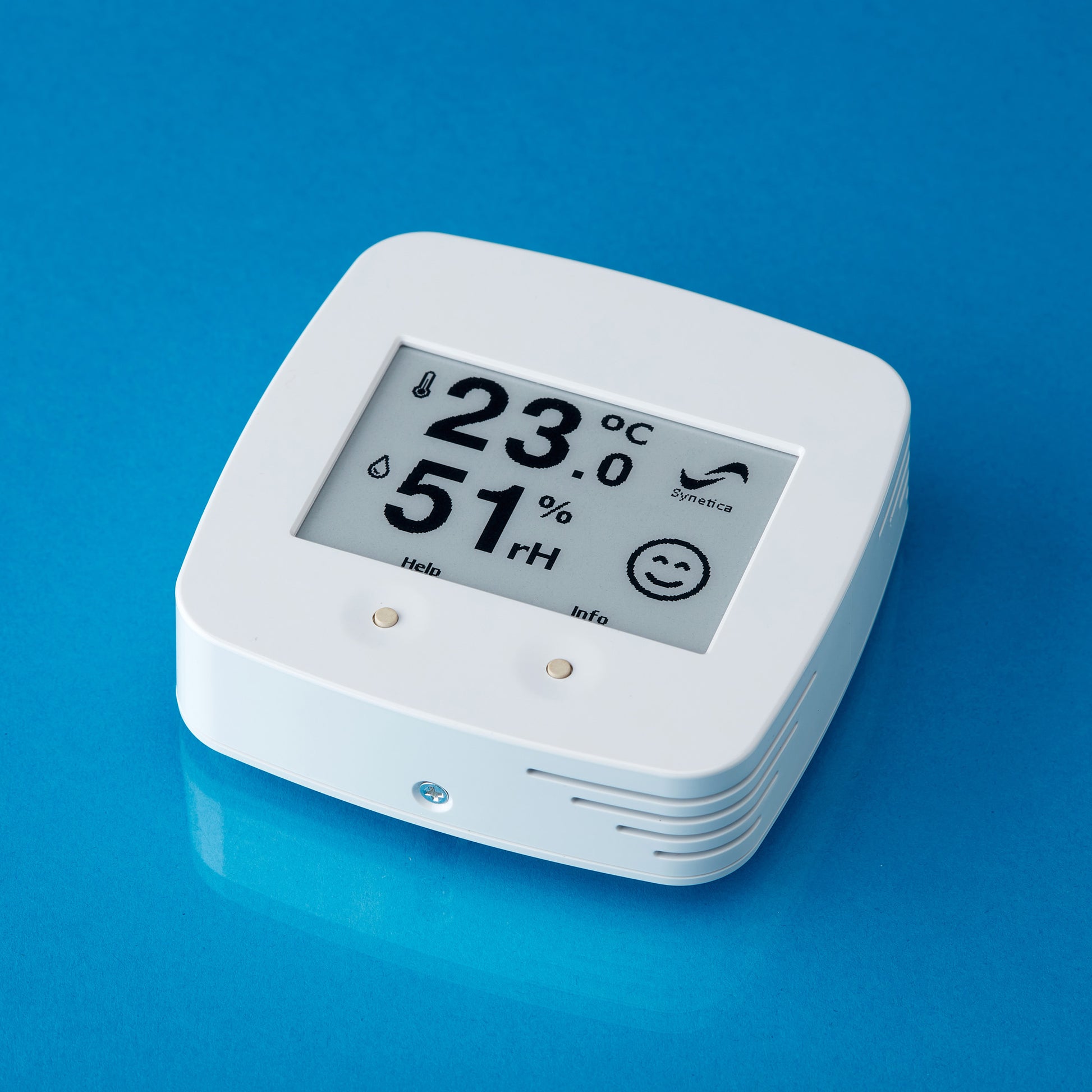

The enLink Zone View is a compact LoRaWAN-enabled environmental sensor designed to monitor and alert users to conditions that may lead to damp or mould buildup in residential spaces. Equipped with a 2.7” e-paper display, the sensor provides real-time visual feedback of temperature and humidity, while supporting custom notifications and alerts via LoRaWAN downlink.
Built for landlords, facility managers, and health-conscious homeowners, the device provides highly accurate humidity and temperature readings, enabling early interventions to prevent mould growth. Its discreet design, long battery life, and wireless connectivity make it an ideal plug-and-play solution for indoor environmental health monitoring .
Key Features
- Accurate temperature and humidity sensing
- Detects conditions that promote mould growth
- Stylish, low-profile enclosure with wide viewing e-paper display
- LoRaWAN wireless range up to 16 km
- Custom alerts and messages via LoRaWAN downlink
- Dual-button interface for user feedback or configuration
- Easy USB configuration and battery-powered installation
- Works with WELL Building Standard® certified
Technical Specifications:
| Component Details | |
|---|---|
| Component Type | LoRaWAN Environmental Sensor |
| Sensing Parameters | Temperature, Humidity |
| Temperature Range | -40°C to +85°C |
| Temperature Accuracy | ±0.2°C (typical), Repeatability ±0.1°C |
| Temperature Response Time | 2 seconds (𝜏63%) |
| Humidity Range | 0–100% RH |
| Humidity Accuracy | ±1.8% RH (typical), Repeatability ±0.25% |
| Humidity Response Time | 4 seconds (𝜏63%) |
| Display Type | 2.7" e-paper, 264×176 (117dpi), active matrix |
| Viewing Angle | Near 180° (super wide) |
| Power Source | 3 × AA 1.5V Alkaline batteries |
| Battery Life | 3+ years (usage dependent) |
| Wireless Protocol | LoRaWAN (EU868, US915, AU915) |
| Wireless Range | Up to 16 km |
| Device Dimensions | 85 × 85 × 25 mm |
| Certifications | CE, FCC, UKCA, ROHS |
| Optional Extras | Light Levels, VOCs, CO₂, Occupancy (Model Dependent) |
Applications:
- Residential mould prevention and remediation
- Social housing and rental property monitoring
- Smart home environmental awareness
- Compliance with indoor air quality health standards
- Real-time data visualization for occupants and landlords
- Integration into LoRaWAN-based smart building platforms
