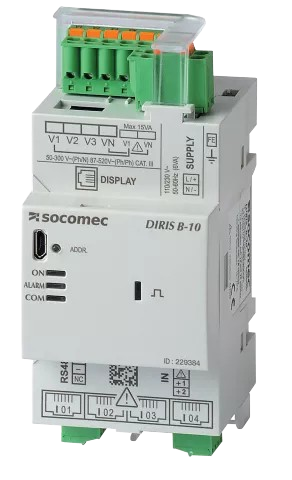

Socomec DIRIS B-10
Socomec DIRIS B-10
Regular price
$890.00 AUD
Regular price
Sale price
$890.00 AUD
Unit price
/
per
Couldn't load pickup availability
Description
The DIRIS B-10 is a modular multifunction power monitoring device designed for accurate and comprehensive electrical parameter measurement in single and multi-circuit applications. With its plug-and-play RJ12 connections, it simplifies installation and configuration, making it suitable for both new and existing installations.
Key Features:
- Multi-Circuit Monitoring: Supports 4 independent current inputs via RJ12, allowing for monitoring of 4 single-phase circuits or 1 three-phase circuit plus 1 single-phase circuit.
- Communication: Equipped with RS485 port supporting Modbus RTU protocol for seamless integration into energy management systems.
- Accuracy: Class 0.5 in accordance with IEC 61557-12, ensuring precise measurements for energy billing and analysis.
- Expandable Functionality: Optional modules available for additional digital and analog inputs/outputs, temperature inputs, and PROFIBUS DP communication.
- Optional Display: Compatible with DIRIS D-30 remote display for local visualization of measurements.
Technical Specifications:
| Category | Specification |
|---|---|
| Device Type | Multifunction Power Monitoring Device (PMD) |
| Model | DIRIS B-10 |
| Supply Voltage | 110–230 VAC (50/60 Hz) |
| Frequency Range | 45–65 Hz |
| Voltage Measurement Inputs | 4 |
| Current Measurement Inputs | 4 (RJ12) |
| Digital Inputs | 2 |
| Communication Ports | RS485 |
| Communication Protocols | Modbus RTU |
| Accuracy Class | Class 0.5 (IEC 61557-12) |
| Sampling Frequency | 10,000 Hz |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | Up to 97% at 55°C |
| Maximum Operating Altitude | 2000 m |
| Dimensions (W x H x D) | 54 x 90 x 65 mm |
| Degree of Protection | IP20 (front side) |
| Weight | 0.22 kg |
| Standards Compliance | IEC 61557-12, UL 61010-1, ANSI C12.20, EN 50160 |
Applications:
- Industrial and commercial energy monitoring
- Submetering for multi-tenant buildings
- Integration into Building Management Systems (BMS)
- Energy audits and load profiling
