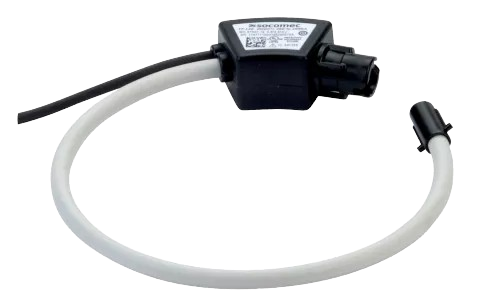

Socomec TF-120 400-2000A
Socomec TF-120 400-2000A
Regular price
$380.00 AUD
Regular price
Sale price
$380.00 AUD
Unit price
/
per
Couldn't load pickup availability
Description
The Socomec TF-120 is a flexible Rogowski coil current sensor designed for accurate and non-intrusive AC current measurement in electrical installations. With a wide measurement range of 400 A to 2000 A, it is ideal for applications where space constraints or irregular conductor shapes make traditional current transformers impractical.
Key Features:
- Flexible Design: Easily wraps around conductors or busbars without disconnecting cables, simplifying installation in retrofit scenarios.
- Plug-and-Play Connection: Equipped with an RJ12 connector for quick and error-free integration with compatible devices.
- High Accuracy: Delivers Class 0.5 accuracy in accordance with IEC 61557-12 standards when used with compatible measurement devices.
- Wide Measurement Range: Covers currents from 400 A to 2000 A, accommodating various load requirements.
- Safety Compliance: Meets UL 61010 and IEC standards, ensuring safe operation in electrical environments.
Technical Specifications:
| Category | Specification |
|---|---|
| Model | TF-120 |
| Reference | 48290575 |
| Measurement Range | 400 A to 2000 A |
| Opening Diameter | 120 mm |
| Accuracy Class | 0.5 (IEC 61557-12) |
| Output Signal | 100 mV |
| Frequency Range | 50/60 Hz |
| Overcurrent Limiting Factor (FS) | 10 |
| Secondary Connection | RJ12 Plug-in |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Maximum Operating Altitude | 2000 m |
| Protection Degree | IP20 / IK07 |
| Weight | 0.164 kg |
| Standards Compliance | IEC 61557-12, UL 61010 |
Applications:
- Energy monitoring in commercial and industrial facilities
- Integration with DIRIS Digiware I modules, DIRIS A-40, and DIRIS B devices
- Retrofitting existing installations without service interruption
- Submetering and load profiling for energy efficiency analysis
