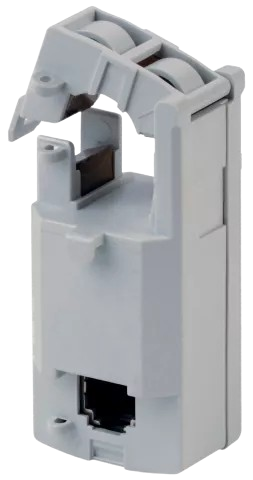

TR-14 40-160A

Description

The Split Core CT TR-14 is a high-precision 160A class 0.5 current sensor designed for non-invasive current measurement in electrical installations. Engineered with PreciSense technology and compliant with IEC 61557-12, it ensures accuracy, safety, and ease of integration. Ideal for use with power monitoring systems such as DIRIS Digiware, DIRIS A-40, and DIRIS B, this sensor provides quick, plug-and-play installation via RJ12 connections.

Key Features

• Smart sensor with class 0.5 accuracy for precise current measurement
• Compatible with DIRIS Digiware, DIRIS A-40, and DIRIS B power monitoring systems
• PreciSense technology ensuring IEC 61557-12 global protection compliance
• Plug-in RJ12 secondary connection for easy installation and configuration
• Snap-mount design with contact protection
• Rated for 160 A with 0.1 A secondary output and 0.1 VA apparent power
• Overcurrent limiting factor FS: 10

Technical Specifications

• Rated Primary Current: 160 A
• Rated Secondary Current: 0.1 A
• Accuracy Class: 0.5
• Opening Diameter: 14 mm
• Type: Attachable split-core current transformer
• Connection: RJ12 plug-in
• Compliance: IEC 61557-12, UL 61010
• Weight: 0.842 kg
• Country of Origin: France

Applications

This split-core CT is particularly suited for industrial and commercial energy monitoring applications where easy retrofitting and precise current tracking are essential. Its compact design and contact-safe housing enable secure installation without interrupting power circuits.
