Description

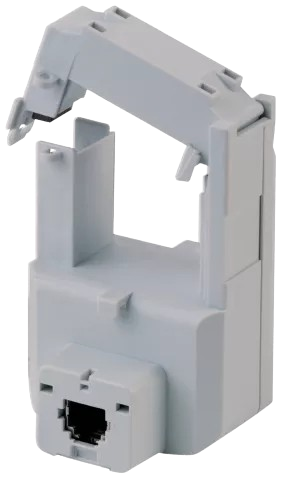

The Socomec TR-32 Split Core Current Transformer is a robust and precision-engineered sensing solution designed for non-intrusive current measurement in electrical systems. Supporting a measurement range of 160 A to 600 A, it offers exceptional flexibility for deployment in industrial, commercial, and infrastructure environments.
Equipped with PreciSense™ technology and engineered for compatibility with DIRIS Digiware, DIRIS A-40, and DIRIS B multi-measurement modules, this transformer provides plug-and-play setup via RJ12 and ensures Class 0.5 accuracy in accordance with IEC 61557-12. The split-core design allows quick, safe installation without disconnecting power—minimizing downtime and installation complexity.
Key Features:
- Measurement Range: 160 A to 600 A
- Accuracy: Class 0.5, certified
- Form Factor: Split-core, non-intrusive installation
- Connection: RJ12 plug-in for easy and safe integration
- Safety: Reinforced insulation with shock protection
- Design: Lightweight and compact with snap-mount capability
- Installation: Copper rail-compatible, attachable without tools
Technical Specifications:
| Component Details | |
|---|---|
| Component Type (ETIM Class) | Current Transformer |
| Primary Rated Current | 600 A |
| Secondary Current on CT | 0.1 A |
| Rated Operating Frequency | 50–60 Hz |
| Max. Operating Voltage (Umax) | 300 V |
| Accuracy Class | 0.5 |
| Overcurrent Limiting Factor (FS) | 10 |
| Secondary Rated Apparent Power | 0.1 VA |
| Calibrated | Yes |
| Construction | |
| CT Type | Split core |
| Material Housing | Plastic |
| Model | Attachable CT |
| Shock Protection | Yes |
| Snap Mounting | Yes |
| Compatible with Copper Rail | Yes |
| Secondary Connection | Plug-in (RJ12) |
| Number of Primary Inputs | 1 |
| Dimensions | |
| Opening Diameter | 32 mm |
| Opening Height x Width | 32 × 32 mm |
| Environmental | |
| Storage Temperature | -25°C to +85°C |
Applications:
- Energy metering in commercial facilities and industrial plants
- Submetering in smart buildings and data centers
- Integration into BMS and SCADA systems
- Power quality audits and load monitoring
With its high performance, safe design, and ease of use, the Socomec TR-32 is a trusted solution for accurate and efficient current measurement in modern power systems.
