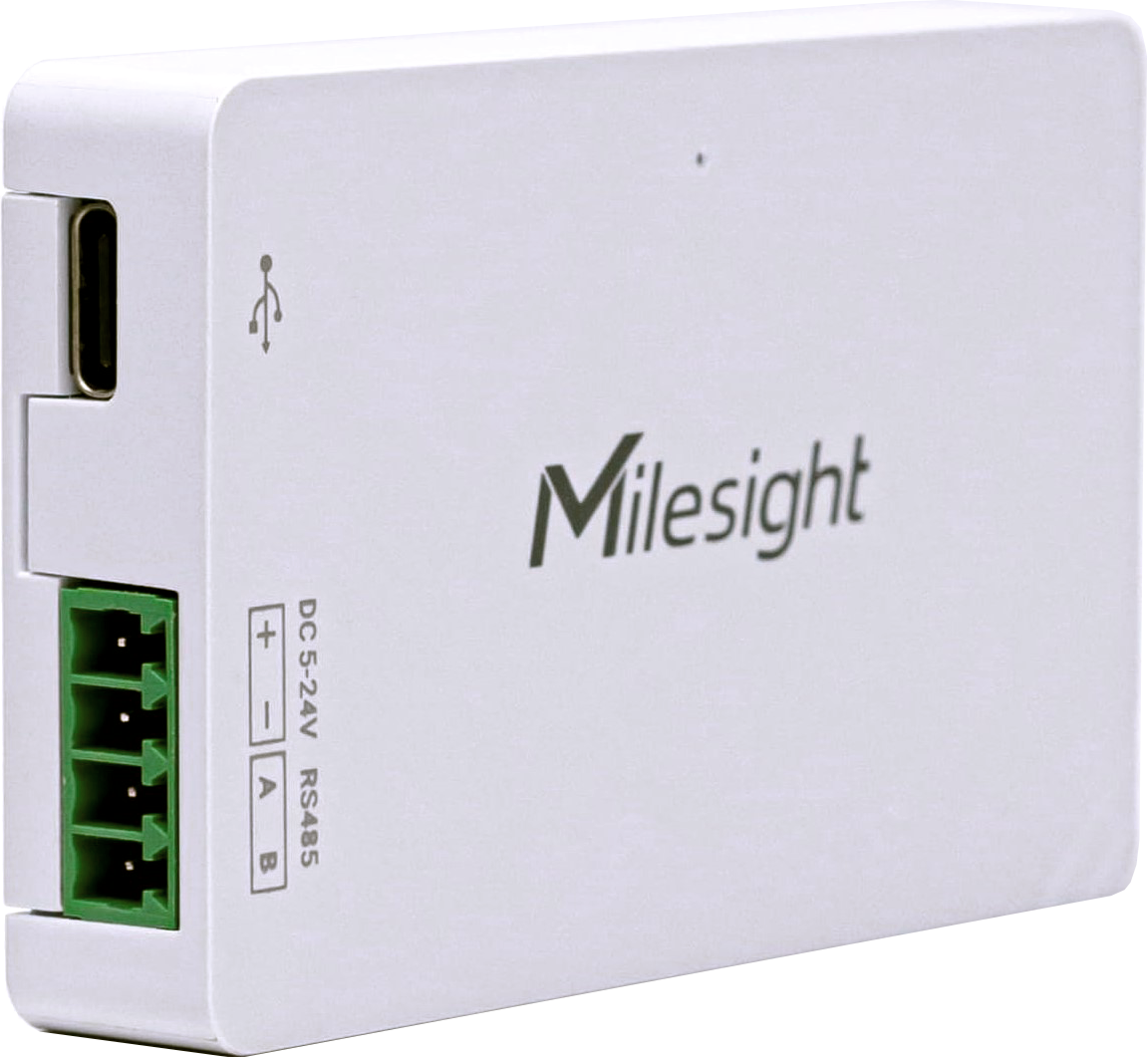

UC100 IoT controller

Milesight UC100 Industrial IoT Controller Modbus RS485 to LoRaWAN

Bridge across the Internet and Modbus Devices

Milesight IoT/LoRaWAN Controller UC100 is an easy and intelligent device dedicated to collecting data from on-site Modbus RTU devices, and transmitting them to the Internet via LoRaWAN®.

• Modbus RS485 to LoRaWAN® Converter
• Local & Remote Easy Configuration
• LoRa D2D Controller & Agent
• 3.5 mm Terminal Block

LoRa D2D

Milesight LoRa D2D protocol enables the UC100 to communicate with other Milesight LoRaWAN® node devices within 1 second without a LoRaWAN® gateway.

• When Working as a LoRa D2D Controller Device
• Triggered by RS485 device to send command to control other LoRa D2D agents
• When Working as a LoRa D2D Agent Device
• Receiving command from other LoRa D2D controllers to control local RS485 device

Easy Local & Remote Configuration

• USB Type-C Port – Local Configuring
• LoRa Downlink – Remote Configuring

Intelligent Trigger System

Users are able to set up 16 commands based on custom trigger conditions (If-Then Statements) & actions to realize the intelligent task.

Autonomous Operation

Milesight RS485 to LoRaWAN Controller UC100 can execute the commands autonomously even when the network is unavailable.

Specifications

Wireless Transmission	Technology	LoRaWAN®, LoRa D2D
	Antenna	Internal Antenna
	Frequency	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
	Tx Power	16dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz)
	Sensitivity	-137dBm @300bps
	Mode	OTAA/ABP Class C
	Advanced Feature	LoRa D2D Controller, LoRa D2D Agent
Data Interface	Port	1 × RS485
	Connector	3.5 mm Terminal Block
	Terminal Resistor	1 × 120 ? Resister Switch
	Baud Rate	1200~115200 bps
	Protocol	Modbus RTU, support reading 16 register values
Others	Configuration Port	1 × Type-C
	Reset Button	1 × Reset Button (Internal)
	LED Indicator	1 × System
Physical Characteristics	Power Connector	3.5 mm Terminal Block
	Power Supply	1. 5-24 VDC by Terminal Block
		2. 5 VDC by Type-C Port
	Power Consumption	< 0.5 W
	Material & Color	PC+ABS, White
	Ingress Protection	IP30
	Operating Temperature	-20°C ~ 60°C (-4? to +140?)
	Relative Humidity	0% ~ 95% (non-condensing)
	Dimensions	70 × 45 × 13 mm (2.75 × 1.77 × 0.51 in)
	Installation	Desktop, Wall Mounting
