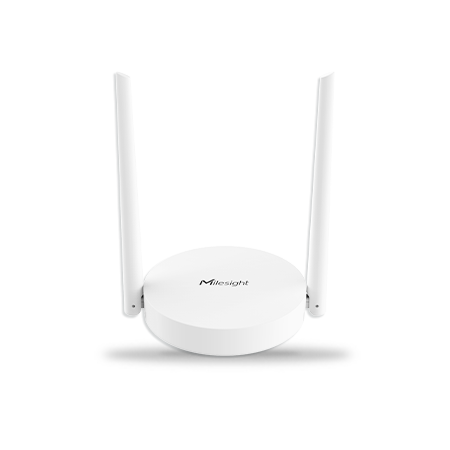

UG63 V2 Indoor LoRaWAN Gateway 8-Channel PoE (4G Version)
The UG63 is an 8-channel lightweight indoor LoRaWAN® gateway with 4G connectivity. Utilizing the SX1302 LoRa chip and high-performance CPU, the UG63 supports connections with up to 2000 end-nodes and can provide coverage of 15 km in open areas and approximately 2 km in urban environments. With its compact design and cellular backup, it is perfectly suited for offices, parking areas, campuses, hotels, exhibition centers, and various other indoor spaces requiring reliable connectivity. It also serves to provide coverage for indoor blind spots.
The UG63 integrates mainstream network servers (such as TTN, ChirpStack, etc.) and features a built-in network server, making it compatible with Milesight IoT Cloud and other third-party clouds for seamless deployment with enhanced cellular connectivity.
Compact and Elegant Design:
Embracing minimalism, the UG63 LoRaWAN® Gateway is as compact as a disk. Combined with an elegant and aesthetic appearance, the UG63 harmonizes perfectly with office environments.
Enhanced Indoor Coverage:
Beyond the standard features of a LoRaWAN® gateway, the Gateway Fleet functionality makes the UG63 particularly suitable for providing network coverage in indoor blind spots with cellular backup connectivity.
Listen Before Talk Technology:
The Listen Before Talk (LBT) protocol enables multiple transmitting nodes to share the same transmitting channel, allowing the device to bypass the Duty Cycle requirements imposed by European standards.
Technical Specifications:
| Hardware System | |
|---|---|
| CPU | Dual-core 240MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB Flash |
| LoRaWAN® | |
| Antenna Connector | 1 × External Antenna |
| Channel | 8 (Half-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Cellular Interface (4G) | |
| Network | 4G LTE (CAT 1)/GSM |
| Antenna | 1 x External Antenna |
| Cellular Band |
L08GL (Global except North America): LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD: B34/38/39/40/41; GSM: B2/3/5/8 L09NA (North America): LTE-FDD: B2/4/5/12/13/66 |
| SIM Slots | 1 (Micro SIM-3FF) |
| Ethernet Interface | |
| Port | 1 × RJ45 WAN Port |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | |
| Standards | IEEE 802.11b/g/n, 2.4 GHz |
| Mode | AP Mode (Device Configuration Only) |
| Others | |
| Button | 1 × Reset Button |
| Console Port | 1 × USB 2.0 (Type-C) for Power Supply and Console |
| LED Indicators | 1 × SYSTEM, 1 x LTE |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Input | 1. 5V by Type-C Port 2. 5~12V DC by 3.5mm 2-pin Terminal Block 3. 802.3af standard PoE input by (Optional) PoE Splitter |
| Power Consumption | Max 3.1 W |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Dimensions | ? 115 x 21 mm (? 4.52 x 0.83 in) |
| Color & Material | White, PC + ABS |
| Installation | Desktop, Wall or Ceiling Mounting |
| Environmental | |
| Operating Temperature | -20°C to +50°C (-4? to +122?) |
| Storage Temperature | -40°C to +85°C (-40? to +185?) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77? |
