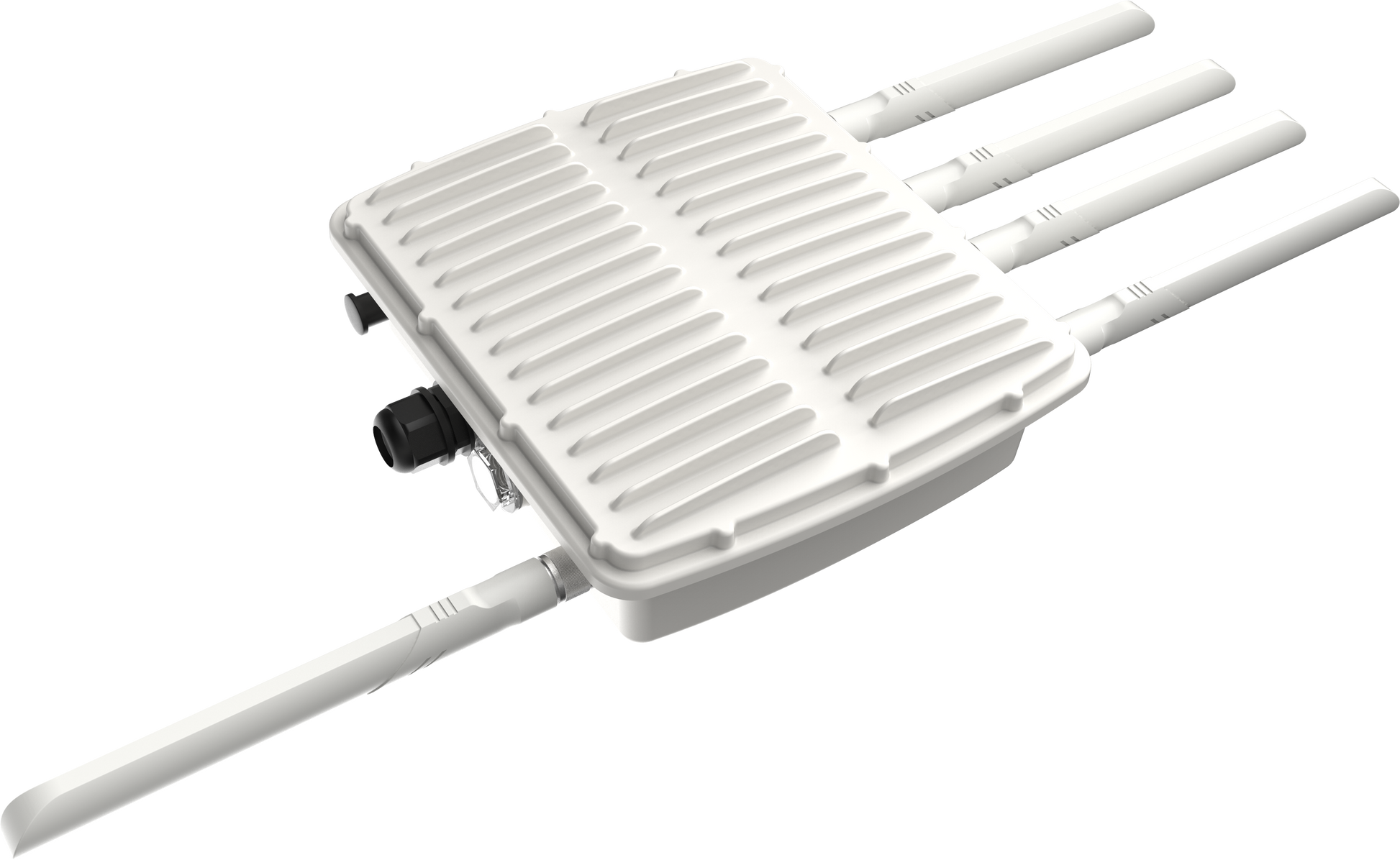

UG87 Outdoor Gateway

Milesight UG87 Industrial LoRaWAN® Gateway 8/16-Channel with Wi-Fi, Cellular, GPS & PoE

The UG87 is a robust industrial-grade LoRaWAN® gateway designed for scalable and reliable connectivity in diverse IoT applications.

• Rugged IP67-Rated Outdoor Design
• Supports 8 or 16 Simultaneous LoRaWAN® Channels
• Multiple Backhaul Options: Ethernet, Wi-Fi, and Cellular
• Embedded Network Server with MQTT Support
• High-Precision GPS for Time Synchronization
• Advanced Security Features with VPN Support

Extended Coverage and High Capacity

With a communication range exceeding 10 km and the capability to handle over 2000 end devices, the UG87 is ideal for expansive deployments in smart cities, agriculture, and industrial automation.

Flexible Connectivity Options

• Backhaul: Ethernet (PoE), Wi-Fi (IEEE 802.11 b/g/n/ac), and optional 3G/4G cellular connectivity
• Dual SIM slots for cellular redundancy
• GPS module for accurate time synchronization

Robust and Secure Design

Encased in an IP67-rated waterproof housing, the UG87 is built to withstand harsh outdoor environments. It supports various VPN protocols, including OpenVPN, IPsec, PPTP, L2TP, GRE, and DMVPN, ensuring secure data transmission.

Technical Specifications

• CPU: 800 MHz, 64-bit ARM Cortex-A53
• Memory: 512 MB DDR3 RAM
• Storage: 8 GB eMMC flash, 1 × M.2 slot for SATA SSD
• LoRaWAN® Channels: 8 or 16
• Frequency Bands: EU433, CN470-510, EU863-870, IN865, US902-928, AU915-928, AS923, KR920-923
• Sensitivity: -140 dBm @ 292 bps
• Output Power: Up to 27 dBm
• Operating Temperature: -40°C to +70°C
• Dimensions: 256 x 226 x 90.5 mm
• Mounting Options: Wall or pole mounting

Network Server Compatibility

The UG87 integrates seamlessly with various network server platforms, including The Things Stack, ChirpStack, Everynet, and Senet, offering flexibility in network management.

Documentation:

UG87 Datasheet

UG87 User Guide
