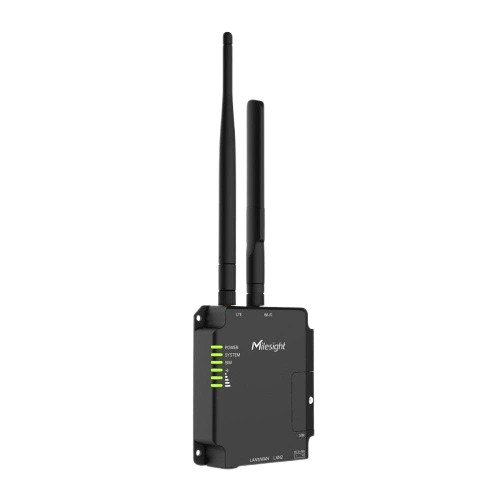

UR32L Lite Industrial Cellular Router

UR32L Milesight Lite Industrial Cellular 4G LTE Router

The UR32L represents a cost-efficient industrial cellular router featuring embedded intelligent capabilities specifically designed for worldwide M2M/IoT deployments. Supporting global WCDMA and 4G LTE networks, this plug-and-play connectivity solution assists operators in achieving maximum uptime. The UR32L incorporates 2 fast Ethernet ports, ensuring continuous internet connectivity for users. With integrated watchdog functionality and multi-link failover detection, the UR32L delivers reliable communications. Through DeviceHub and MilesightVPN integration, the UR32L enables streamlined and efficient network management. Simple deployment and extensive remote device management capabilities make the UR32L adaptable for most IoT/M2M applications.

• Industrial-grade Design
• -40°C to 70°C Operating Temperature
• Compact Size for Limited Space Installation

Worldwide 4G LTE Connectivity

• 150 Mbps Downlink & 50 Mbps Uplink
• Global 4G/3G Frequency Bands Compatibility

Enhanced Routing Capabilities

• Stateful Firewall VPN
• VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)
• SNMP v1/v2c/v3

DeviceHub Management Platform

• Remote Management Platform
• Remote Configuration
• Bulk Firmware Upgrade
• Location Tracking
• Device Status Monitoring

Technical Specifications

Hardware System	CPU	ARM Cortex-A7?528 MHz
	Memory	128 MB DDR3 RAM and 128MB Flash
Cellular Interface	Antenna Connector	1 × 50 ? SMA Connectors (Center PIN: SMA Female)
	SIM Slots	1?Mini SIM-2FF?
Ethernet Interface	Numbers	1 × WAN + 1 × LAN or 2 × LAN
	Property	10/100 Mbps (Auto-Sensing)
	Mode	Full or half duplex (Auto-Sensing)
	PoE	2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Software	Network Protocols	PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc.
	VPN	DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
	Security	Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
	Management	Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub
	AAA	Radius, Tacacs+, LDAP, Local Authentication
	Multilevel Authority	Multiple Levels of User Authority
	Reliability	VRRP, WAN Failover
Power Supply	Power Connector	2-pin 5.08 mm Terminal Block
	Input Voltage	9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Physical Characteristics	Ingress Protection	IP30
	Housing	Metal
	Dimension	108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
	Installation	Desktop, Wall or DIN Rail Mounting
Environmental	Operating Temperature	-40°C to +70°C (-40? to +158?) Reduced Cellular Performance Above 60°C
	Storage Temperature	-40°C to +85°C (-40? to +185?)
	Ethernet Isolation	1.5 kV RMS
	Relative Humidity	0% to 95% (non-condensing) at 25°C/77?

Documentation:

Milesight UR32L Datasheet

Milesight UR32L Quick Guide

Milesight UR32 User Guide
