Description

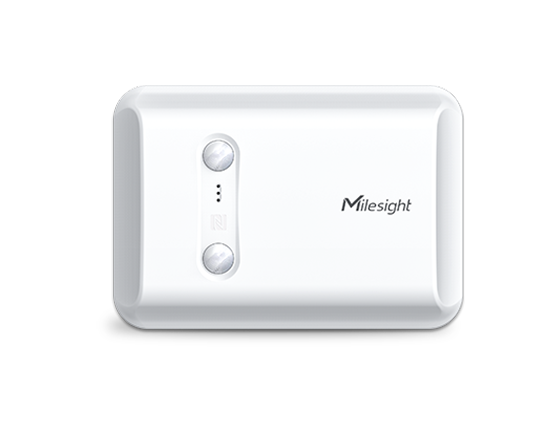

VS350 AI LoRaWAN Passage People Counter
- LoRaWAN® Wireless Deployment
- Flexible Bi-Directional People Counting
- Cost-Effective Accuracy Performance
- 100% Anonymous Detection
- Large Detection Area
- 4 Years Long Battery Life with High Report Frequency
- Unique Milesight D2D Communication
- Easy Installation
Effortless wireless deployment eliminates networking complexities while LoRaWAN® technology delivers low power consumption, long-distance transmission, deep penetration capabilities, and complete anonymous detection for privacy compliance.
Bi-Directional People Counting
The Passage People Counter utilizes dual PIR sensors to identify human presence through infrared radiation change detection. To differentiate bidirectional movements and achieve precise two-way people counting, the dual PIR sensors operate in coordination to detect movement directions based on signal waveform analysis.
100% Anonymous Detection
LoRaWAN® narrow bandwidth data transmission contains no personally identifiable information, ensuring complete privacy protection at the source level. Full GDPR compliance provides peace of mind for privacy-sensitive applications.
Cost-Effective Accuracy Performance
The Passage People Counter delivers exceptional value with high-performance analytics for business intelligence. Achieving up to 95% accuracy for single person detection and 80% accuracy for people flow analysis in most spaces, this solution combines precision with cost-effectiveness for reliable data-driven decision making across various applications.
Comprehensive Detection Coverage
Engineered for wide passage monitoring with coverage up to 3 meters in height and 2.8 meters in width, ensuring no movement escapes detection. This extensive coverage provides complete insights into foot traffic patterns within the monitored area.
Milesight D2D Communication
The proprietary Milesight LoRa®-based protocol enables instant communication with other Milesight LoRaWAN® devices within 1 second. Connected facilities like lighting systems can be intelligently controlled through automated linkage, enabling accurate, timely, and automatic responses for enhanced smart building performance.
Simplified Installation Process
Deploying this advanced people counter is remarkably straightforward. The sensor's user-friendly physical design and mounting brackets prioritize simplicity and effortless installation, ensuring hassle-free deployment that gets foot traffic monitoring operational quickly.
Technical Specifications
| People Counting | |
|---|---|
| Technology | Dual PIR |
| Installation Height | Ceiling Mount: ? 3.0m Wall Mount: 1.2m~1.3m |
| Detection Range | Ceiling Mount: Passage Width = 2.8 m (At the height of 3m) Wall Mount: Passage Width < 3.8 m |
| Detection Rate | Single Person: Up to 95% Multiple People: Up to 80% |
| Best Operating Temperature | 15 °C~32 °C |
| Bi-directional Counting | Support |
| Temperature | |
| Range | -30°C ~ 70°C |
| Accuracy | ± 0.5°C |
| Wireless Transmission | |
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Others | |
| LED | 1 × LED Indicator (Internal) |
| Button | 1 × Reset Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Advanced Feature | Data Storage, Data Retransmission, Milesight D2D Controller |
| Physical Characteristics | |
| Power Supply | 2 x 2700 mAh ER14505 Li-SOCl? Replaceable Batteries |
| Battery Life | Around 4 Years (10-min Interval, 25°C, 1000 People per Day) |
| Operating Temperature | -20°C ~ 60°C |
| Relative Humidity | 0% - 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 100 x 70 x 21 mm (3.94 x 2.76 x 0.83in) |
| Material & Color | PC (Flame Retardant), White |
| Installation | Ceiling Mount, Wall Mount |
Notes:
- 40-50 cm should be maintained between two people while passing through the detection area
- PIR sensitivity is greatly influenced by ambient temperature, with optimal working temperature range of +15 to +32°C
- Battery life tested under laboratory conditions for guideline purposes only
