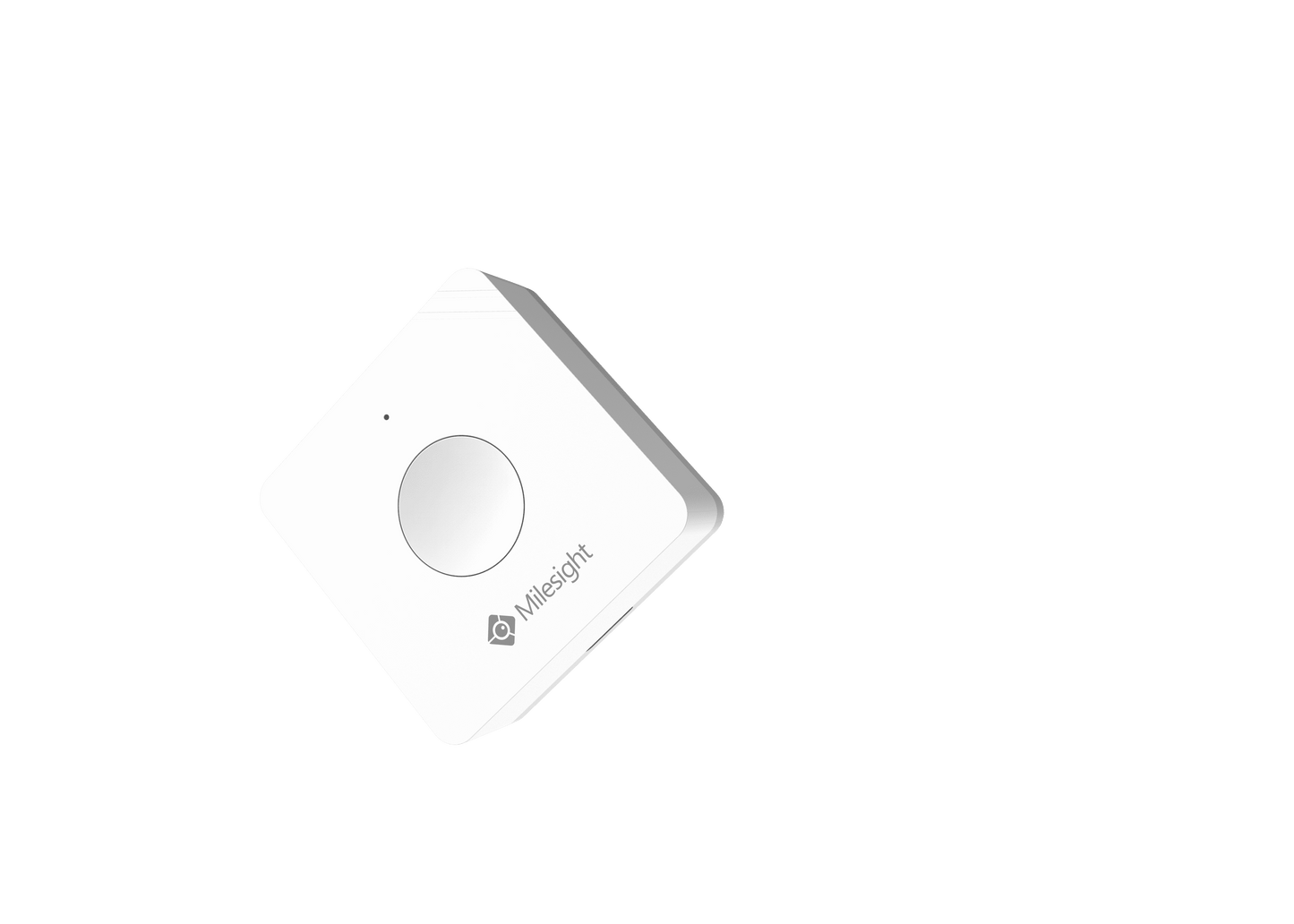

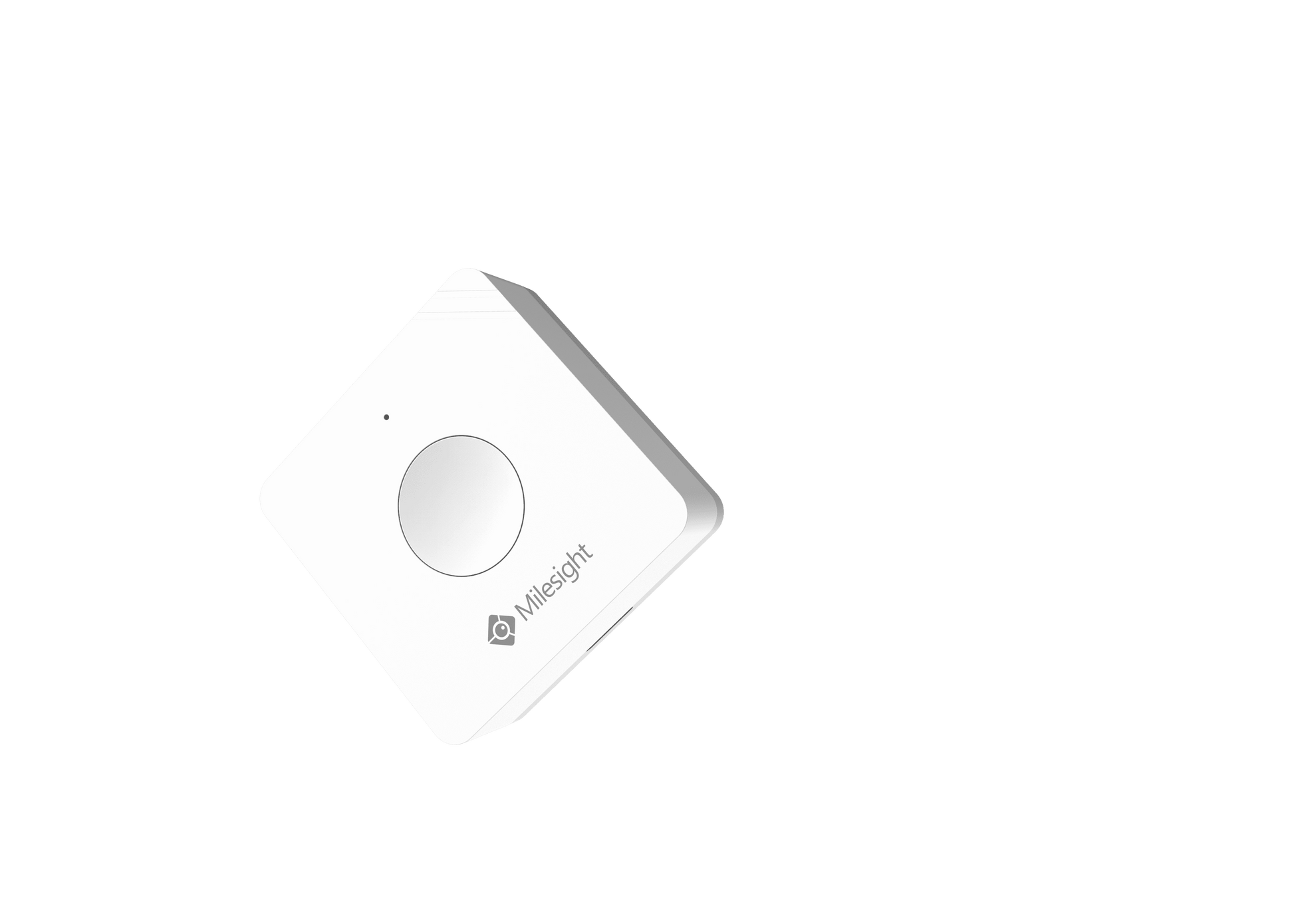

WS101 Smart Button
WS101 Smart Button
Couldn't load pickup availability
Description
WS101 LoRaWAN Smart Button
- Multiple Press Actions
- LoRaWAN® Based
- Easy Configuration (via NFC)
- 5 Years Battery Life
The Milesight WS101 is a LoRaWAN®-based smart button designed for wireless controls, triggers, and alarms. The WS101 supports multiple press actions, all user-definable to control devices or trigger automated scenes. Additionally, Milesight offers a red button variant primarily used for SOS alarms. Compact and battery-powered, the WS101 is easy to install and portable for use anywhere.
The Milesight WS101 Smart Button can be mounted in a fixed location or moved as needed. When integrated with Milesight IoT Cloud, it provides reliable functionality whenever and wherever required.
This button serves as an invaluable convenience for seniors, individuals with health conditions, and small children to contact caregivers or call for emergency assistance.
Ultra-Low Power Operation
Engineered for extended autonomous operation with minimal power consumption, ensuring reliable performance over extended periods.
LoRaWAN Technology
The Milesight Smart Button is compatible with industry-standard LoRaWAN® gateways, providing communication range up to 15 km in rural areas and 2 km in urban environments.
Simple Configuration Process
Device activation and configuration is accomplished through NFC technology using a mobile phone or PC for quick and efficient setup.
Technical Specifications
| Wireless Transmission | Technology | LoRaWAN® |
| Frequency | AU915 | |
| Tx Power | 22 dBm (915 MHz) | |
| Sensitivity | -137 dBm @300bps | |
| Mode | OTAA/ABP Class A | |
| Interface | Button | 1 × External Button + 1 × Power/Reset Button (Internal) |
| LED Indicator | 1 | |
| Buzzer | Support | |
| Operation | Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | Power Supply | 1 × 1650 mAh ER14335 Li-SOCl? battery |
| Battery Life | 6.5 years (10 button presses per day) | |
| Operating Temperature | -30°C to +60°C | |
| Relative Humidity | ?90% (non-condensing) | |
| Ingress Protection | IP30 | |
| Dimension | 50 × 50 × 18 mm (1.97 × 1.97 × 0.71 in) Button: ?20 mm (?0.79 in) |
|
| Material | Anti-flaming Polycarbonate | |
| Color | White (Button: White/Red Optional) | |
| Installation | On flat surfaces with screws or 3M tapes, Lanyard |
Note: Battery life tested under laboratory conditions for guideline purposes only.
