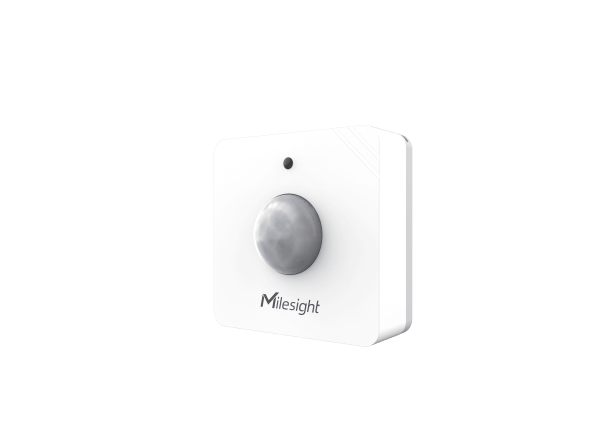

WS202 PIR & Light Sensor

WS202 AI Workplace LoRaWAN PIR & Light Sensor

• PIR Presence Detection
• Brightness Measurement
• LoRaWAN® Wireless
• Easy Configuration (via NFC)

Precise Human Presence Detection

Combining advanced PIR motion detection technology with brightness measurement capabilities, the Milesight WS202 accurately determines whether an indoor space is occupied by detecting human activity and environmental light conditions.

Enable Automated & Intelligent Lighting Management

Through integration with Milesight Smart Switch or other LoRaWAN® lighting control devices, the WS202 enables automatic light activation when people enter a space and deactivation when they leave, creating efficient energy management systems.

Extensive Detection Coverage

• 120° Horizontal Detection
• 100° Vertical Detection
• Up to 8 m Detection Distance

Advanced Brightness Monitoring

• 1 lux resolution precision
• Measurement range from 1 to 60,000 lux
• Customizable threshold-based Bright/Dark determination

Simple Configuration Process

Device activation and configuration is streamlined through NFC technology, enabling setup via mobile phone or PC for quick deployment.

Technical Specifications

Wireless Transmission	Technology		LoRaWAN®
	Frequency		CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
	Tx Power		16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
	Sensitivity		-137 dBm @300bps
	Mode		OTAA/ABP Class A
Measurement	PIR	Detection Area	120° Horizontal, 100° Vertical
		Detection Distance	Maximum 8 m
	Light	Status	Bright/Dark (Determine 1-60000 lux as Bright or Dark according to custom threshold)
Operation	Configuration		NFC Configuration via Mobile App
Physical Characteristics	Power Supply		1 × 1650 mAh ER14335 Li-SOCl? battery
	Battery Life		4 years (30 triggers per day + 30 min interval, EU868-SF7) 3.5 years (30 triggers per day + 30 min interval, EU868-SF10)
	Operating Temperature		-30°C to +60°C
	Relative Humidity		?90% (non-condensing)
	Ingress Protection		IP30
	Dimension		50 × 50 × 23.8 mm (1.97 × 1.97 × 0.94 in)
	Material		Anti-flaming Polycarbonate
	Color		White
	Installation		On flat surfaces with screws or 3M tapes

Note: Battery life tested under laboratory conditions for guideline purposes only.
